(9-32) - DIGGING TEETH AND CHAIN, STANDARD DUTY 164 DIGGING CHAIN (34

Запчасти Case TF300 (9-32) - DIGGING TEETH AND CHAIN, STANDARD DUTY 164 DIGGING CHAIN (34 (09) - CHASSIS/ATTACHMENTS

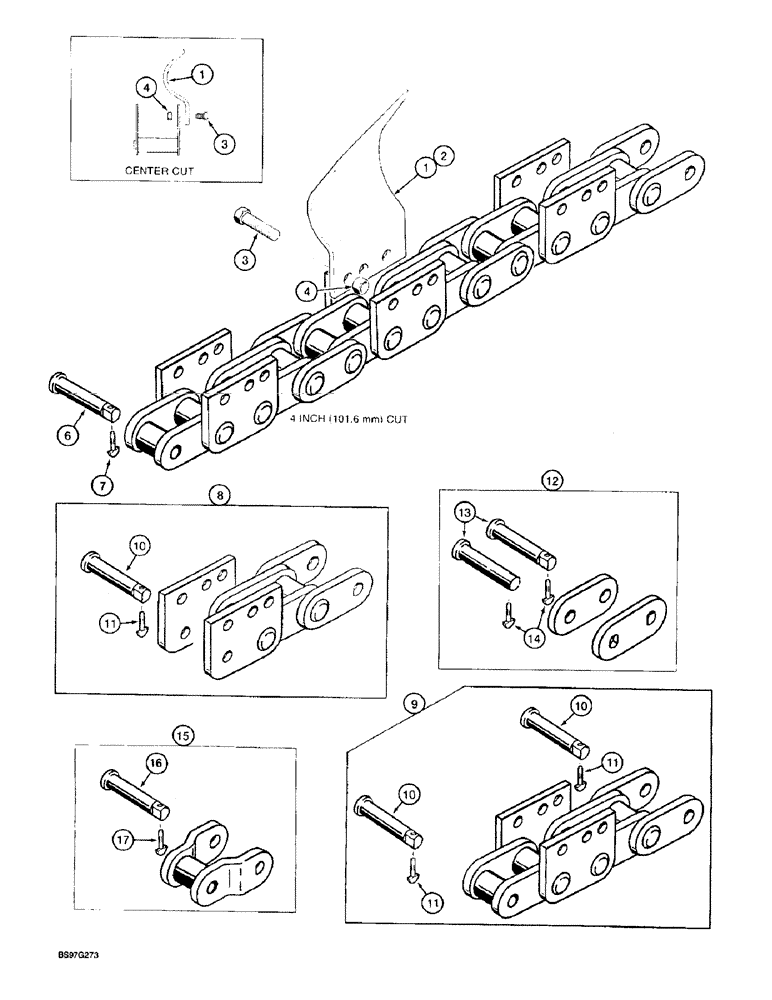

Схема запчастей Case TF300 - (9-32) - DIGGING TEETH AND CHAIN, STANDARD DUTY 164 DIGGING CHAIN (34 (09) - CHASSIS/ATTACHMENTS
6
1
16
3
7
3
9
10
10
4
1
13
17
11
11
8
14
2
4
15
11
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

188750A1

TOOTH

- digging, right-hand

1шт.

2

188749A1

TOOTH

- digging, left-hand (Not Shown)

1шт.

3

25771R1

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8

- hex, 3/8 NF x 7/8 inch, grade 8

1шт.

4

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

5

ZB16400BXX

CHAIN ASSEMBLY - digging, bare, 2 or 4 pitch, Includes: Ref. 6 and 7

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

5

ZB164042XX

CHAIN ASSEMBLY - digging, cupped teeth, 2 pitch, Includes: Ref. 6 and 7

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

5

ZB164044XX

CHAIN ASSEMBLY - digging, cupped teeth, 4 pitch, Includes: Ref. 6 and 7

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

5

ZB16404AXX

CHAIN ASSEMBLY - digging, alligator rock and frost, Includes: Ref. 6 and 7

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

6

253214A1

PIN

- connector

1шт.

7

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

1шт.

8

H673238

CHAIN (AG)

SECTION ASSEMBLY - repair, digging chain, 2 pitch, Includes: Ref. 10 and 11

1шт.

9

H564633

KIT

SECTION ASSEMBLY - repair, digging chain, 4 pitch, Includes: Ref. 10 and 11

1шт.

10

H208454

AXLE PIN

PIN - connector

2шт.

11

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

2шт.

12

H564815

DRAG LINK

LINK ASSEMBLY - connector, digging chain, 1 pitch, includes 2 links, Includes: Ref. 13 and 14

1шт.

13

H208454

AXLE PIN

PIN - connector

2шт.

14

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

2шт.

15

H208462

DRAG LINK

LINK ASSEMBLY - half link, offset, digging chain, 1 pitch, Includes: Ref. 16 and 17

1шт.

16

H208454

AXLE PIN

PIN - connector

1шт.

17

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

1шт.
