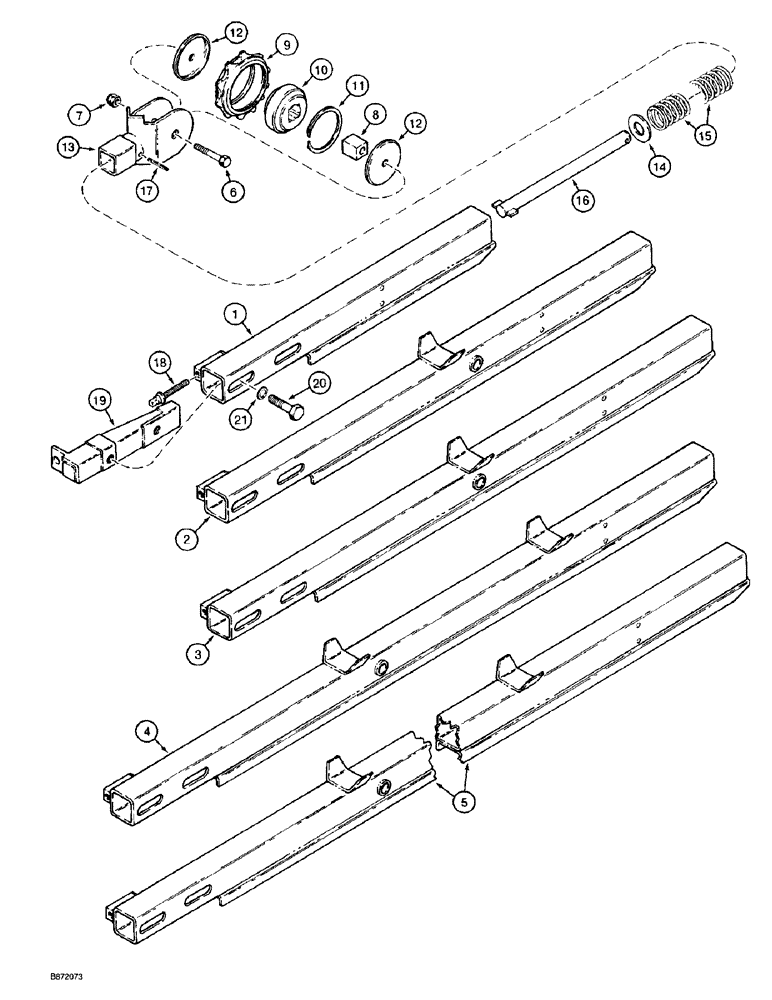

Запчасти Case TF300 (9-30) - TRENCHER CHANNEL BOOM AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H615559

BOOM

- channel type, 660 mm (26 inch) didigging depth and 743 mm (29 inch) boom length

1шт.

2

H615492

BAR

BOOM - channel type, 1016 mm (40 inch) digging depth and 1164 mm (46 inch) boom length

1шт.

3

H615419

BOOM

- channel type, 1143 mm (45 inch) digging depth and 1326 mm (52 inch) boom length

1шт.

4

H615476

BOOM

- channel type, 1372 mm (54 inch) digging depth and 1597 mm (63 inch) boom length

1шт.

5

H615450

BOOM

- channel type, 1676 mm (66 inch) digging depth and 2004 mm (79 inch) boom length

1шт.

6

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

7

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

1шт.

8

H232645

BUSHING

- square

1шт.

9

H33563

DRIVE SPROCKET

SPROCKET - boom end

1шт.

10

H747139

BALL BEARING

BEARING - ball, with seals, sprocket

1шт.

11

H33837

RING

- snap, sprocket bearing

1шт.

12

H350785

WASHER

- flat, special, if used

2шт.

13

H33829

BRACKET

- mounting, end sprocket

1шт.

14

H34199

WASHER

- flat, special, 1 x 2 x 5/8 inch

1шт.

15

H56713

VALVE SPRING

SPRING - end sprocket

1шт.

16

H509349

TUBE

GUIDE - spring, end sprocket

1шт.

17

38-12432

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

18

H33993

ADJUSTMENT SCREW,5/8" - 11 x 2 5/8"

- adjusting

1шт.

19

H326728

GUIDE

- boom

1шт.

20

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

21

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

2шт.
