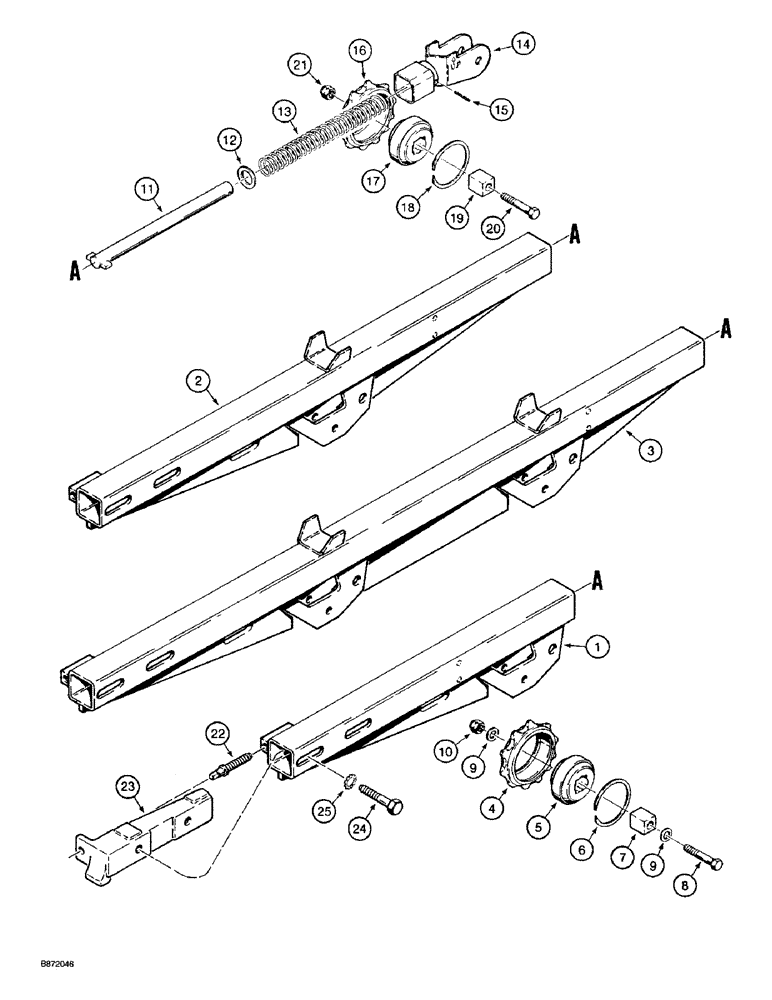

Запчасти Case TF300 (9-28) - TRENCHER SPROCKET BOOM AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H560565

BOOM

- sprocket type, 660 mm (26 inch) digging depth and 727 mm (29 inch) boom length

1шт.

2

H560573

BOOM

- sprocket type, 1016 mm (40 inch) digging depth and 1157 mm (46 inch) boom length

1шт.

2

H560938

BOOM

- sprocket type, 1143 mm (45 inch) digging depth and 1326 mm (52 inch) boom length

1шт.

Ref. 2 screws into the lug on the side of the boom. the part number for the lug is H33977.

1шт.

3

H567818

BOOM

- sprocket type, 1732 mm (54 inch) digging depth and 1588 mm (63 inch) boom length

1шт.

3

H567826

BOOM

- sprocket type, 1676 mm (66 inch) digging depth and 1996 mm (79 inch) boom length

1шт.

4

H33563

DRIVE SPROCKET

SPROCKET - boom end, intermediate

1шт.

5

H747139

BALL BEARING

BEARING - ball, sprocket

1шт.

6

H33837

RING

- snap

1шт.

7

H232645

BUSHING

- square, sprocket bearing

1шт.

8

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

9

H350785

WASHER

- flat, special

2шт.

10

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

1шт.

11

H509349

TUBE

GUIDE - spring, end sprocket

1шт.

12

H34199

WASHER

- flat, special, 1 x 2 x 5/8 inch, spring retaining

1шт.

13

H56713

VALVE SPRING

SPRING - end sprocket, end sprocket

1шт.

14

H33829

BRACKET

- mounting

1шт.

15

38-12432

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

16

H33563

DRIVE SPROCKET

SPROCKET - boom end

1шт.

17

H747139

BALL BEARING

BEARING - ball, with seals, end sprocket

1шт.

18

H33837

RING

- snap

1шт.

19

H232645

BUSHING

- square, sprocket bearing

1шт.

20

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

21

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

1шт.

22

H33993

ADJUSTMENT SCREW,5/8" - 11 x 2 5/8"

- adjusting

1шт.

23

H93682

BOOM

GUIDE - boom

1шт.

24

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

25

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

2шт.

Sprocket that mounts to top side of boom an "flush digger" units is on Figure 9-56, part H68494.

1шт.
