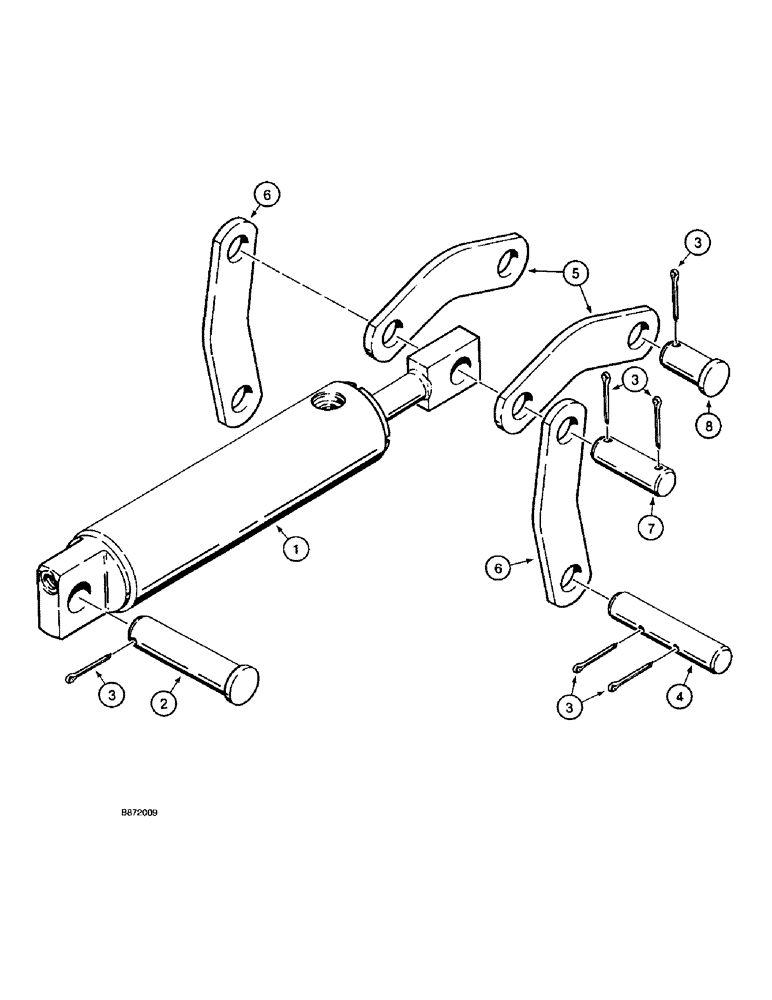

Запчасти Case TF300 (9-26) - TRENCHER BOOM LIFT CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke (See Figure 8-28)

1шт.

2

H71597

AXLE PIN

PIN - clevis, closed end of boom lift cylinder

1шт.

3

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

6шт.

4

H65029

AXLE PIN

PIN - retaining

1шт.

5

H406835

DRAG LINK

LINK - boom lift cylinder, short

2шт.

6

H406520

DRAG LINK

LINK - boom lift cykinder, long

2шт.

7

H185652

AXLE PIN

PIN - links, to cylinder, rod end of boom lift cylinder

1шт.

8

H65003

AXLE PIN

PIN - link, to boom lever

1шт.
