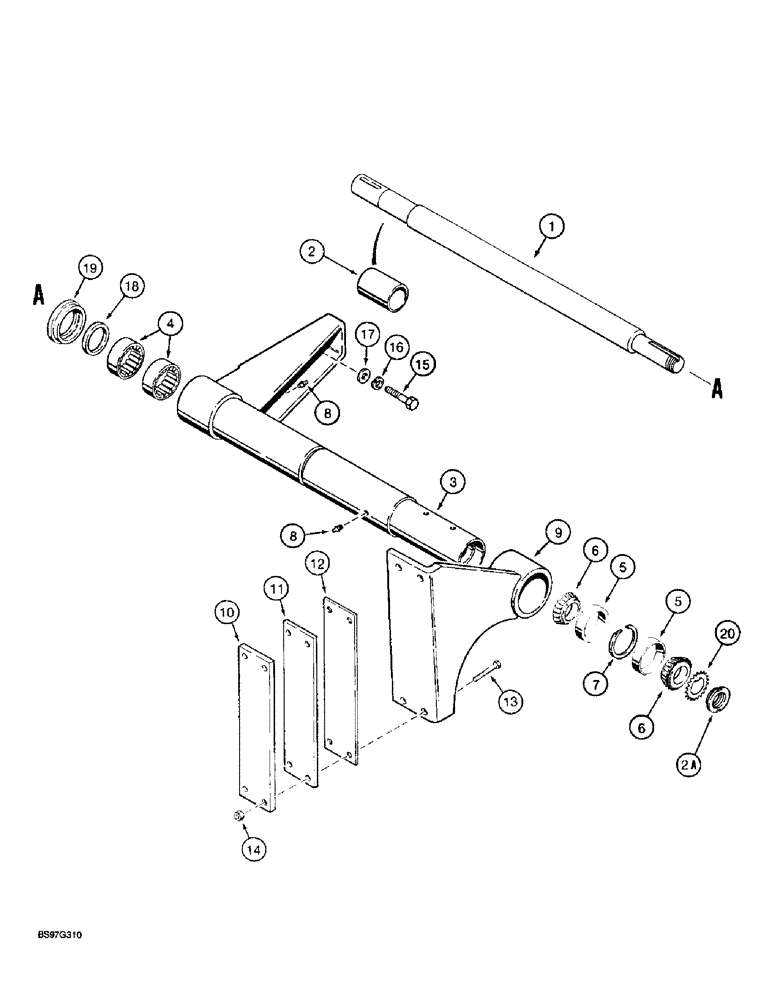

Запчасти Case TF300 (9-22) - FLUSH DIGGER BOOM MOUNTING AND SHAFT, USED WITH ONE PIECE (09) - CHASSIS/ATTACHMENTS

H577064

SHAFT

ASSEMBLY - flush digger, Includes: Ref. 1 - 2A

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - flush digger

1шт.

2

H70789

SLEEVE CYLINDER

SLEEVE - shaft

1шт.

2a

131-1034

BEARING LOCK NUT,Bearing, 1.1811" Bore

NUT - bearing lock, N-06

1шт.

197140A1

BOOM

MOUNTING - boom, weldment, replaces cast assembly H577072, Includes: Ref. 3 - 8

1шт.

3

196942A1

BOOM

MOUNTING - boom, weldment

1шт.

4

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - needle

2шт.

5

651817R1

BEARING CUP

CUP - tapered roller bearing

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

2шт.

7

H91025

RETAINER

RING - retainer

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

9

H672551

SUPPORT

BRACKET - support

1шт.

10

H98715

SPACER

BAR - support plate, used inside chassis

1шт.

11

H426726

SHIM,1.50mm Thk

Support bracket 1.50mm Thk

1шт.

12

H426734

SHIM,2.65mm Thk

Support bracket 2.65mm Thk

1шт.

13

113-223

PREV TORQUE BOLT,Locking, 3/8"-16 x 2 1/4", G5

BOLT - hex, self-locking, 3/8 NC x 2-1/4 inch

4шт.

14

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

15

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

17

495-11081

WASHER,3/4", SAE

2шт.

18

H749085

SEAL

- grease, casting

1шт.

19

H53546

SEAL

SEAL - split sprocket, casting

1шт.

20

192-306

LOCK WASHER,Type W-06

WASHER - bearing lock, SAE No. W-06

1шт.
