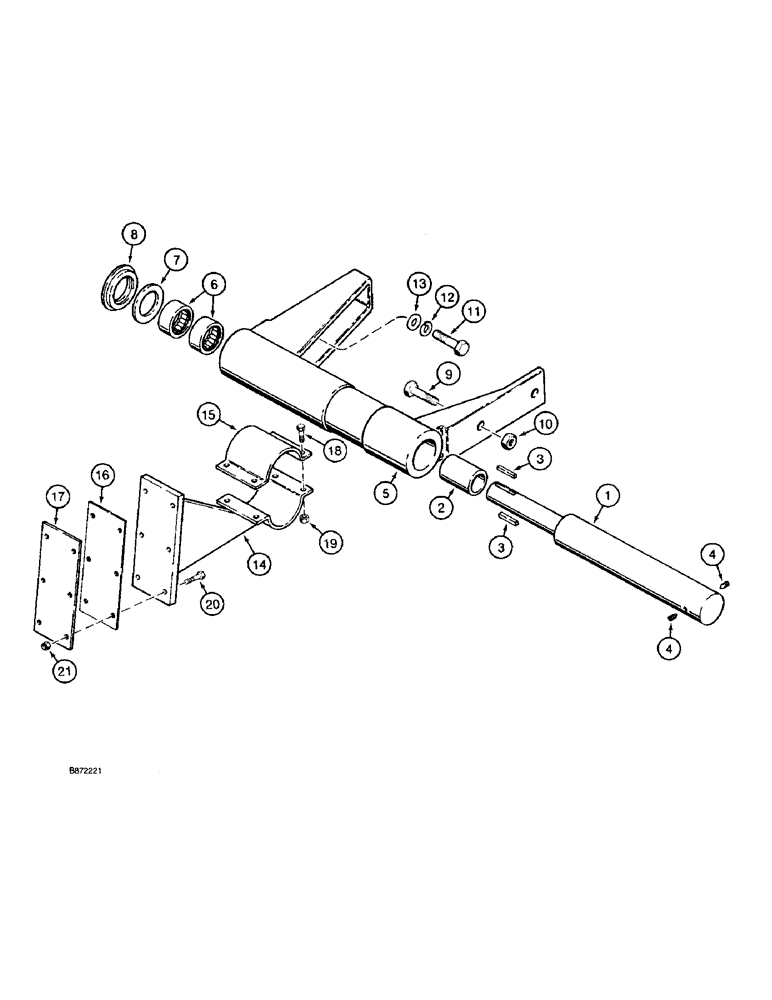

Запчасти Case TF300 (9-20) - FLUSH DIGGER BOOM MOUNTING AND SHAFT, USED WITH TWO PIECE (09) - CHASSIS/ATTACHMENTS

H586230

SHAFT

ASSEMBLY - flush digger, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - flush digger

1шт.

2

H70789

SLEEVE CYLINDER

SLEEVE - shaft

1шт.

3

H70045

KEY

- square, 3/8 x 1-3/4 inch long

2шт.

4

83-64

SET SCREW,Hex Soc, 3/8"-16 x 1/4"

SCREW - set, hex socket headless, 3/8 NC x 1/4 inch cup point

2шт.

H588285

HOUSING

CASTING ASSEMBLY - boom mounting, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

CASTING - boom mounting

1шт.

6

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - needle

2шт.

7

H749085

SEAL

- grease, casting

1шт.

8

H53546

SEAL

SEAL - split sprocket, casting

1шт.

9

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

10

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

2шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

12

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

13

495-11081

WASHER,3/4", SAE

2шт.

14

H586255

BRACKET

- support

1шт.

15

H586248

SUPPORT

COVER - support bracket

1шт.

16

H256321

SHIM

- support bracket

1шт.

17

H256339

SHIM

- support bracket, mounted to inside of chassis

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

21

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

6шт.
