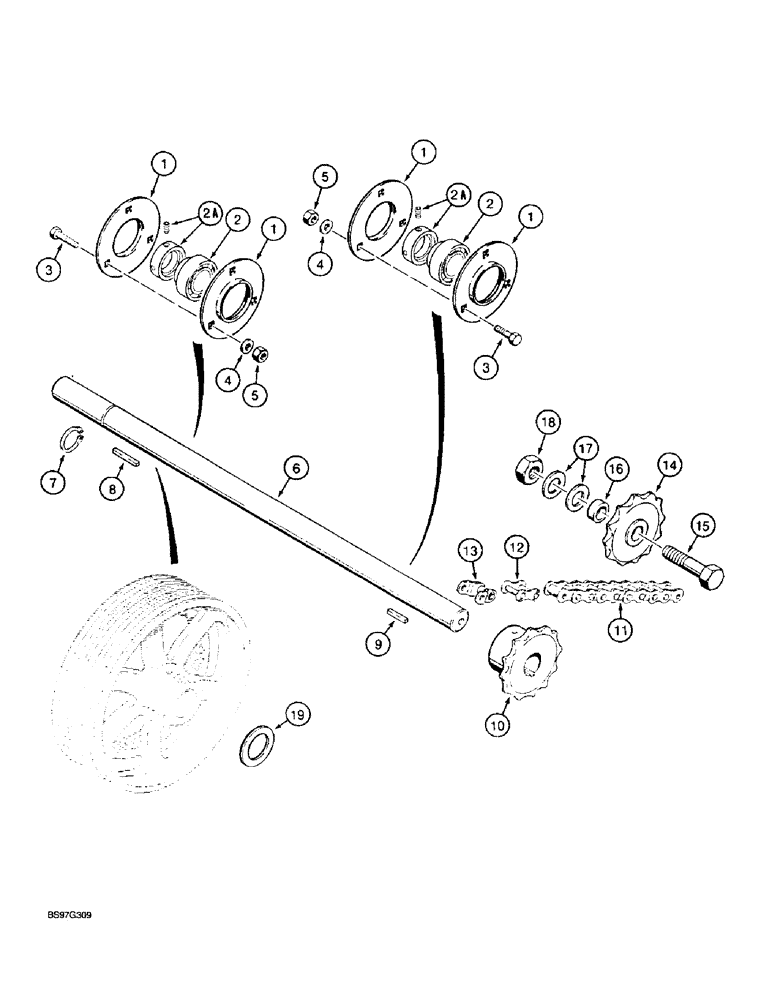

Запчасти Case TF300 (9-16) - JACKSHAFT AND TRENCHER DRIVE CHAIN (09) - CHASSIS/ATTACHMENTS

1

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing, jackshaft, bolts to brackets on trencher shield

4шт.

2

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- shaft

2шт.

2a

557115R11

COLLAR

COLLAR - locking, includes NSS set screw

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

6шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

6шт.

6

H109090

SHAFT

JACKSHAFT - trencher

1шт.

7

103-11112

SNAP RING,#112, Ext

Ring, Snap, , Jackshaft #112, Ext

1шт.

8

H41996

KEY

- square, 1/4 x 1-3/4 inch, clutch end bearing

1шт.

9

T13450

KEY

- square, 1/4 x 1-1/4 inch long, chain end bearing

1шт.

10

H48850

DRIVE SPROCKET

SPROCKET - drive, chain

1шт.

11

H748525

CHAIN (AG)

CHAIN - trencher drive, ASA No. 60, 86 pitch, Includes: Ref. 12

1шт.

12

241-1316

LINK,19.05mm Pitch

LINK - connecting, single pitch, No. 60, 3/4 inch pitch

1шт.

13

241-1716

LINK,19.05mm Pitch

LINK - offset, single pitch, No. 60, 3/4 inch pitch, drive chain

1шт.

14

541857R92

SPROCKET,15T

- idler, 15 teeth

1шт.

15

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

16

H114140

SPACER

- 7/8 OD x 1/2 inch

1шт.

17

H426809

SPACER

WASHER - flat, special

2шт.

18

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

1шт.

19

H68015

WASHER

- thrust, special

1шт.
