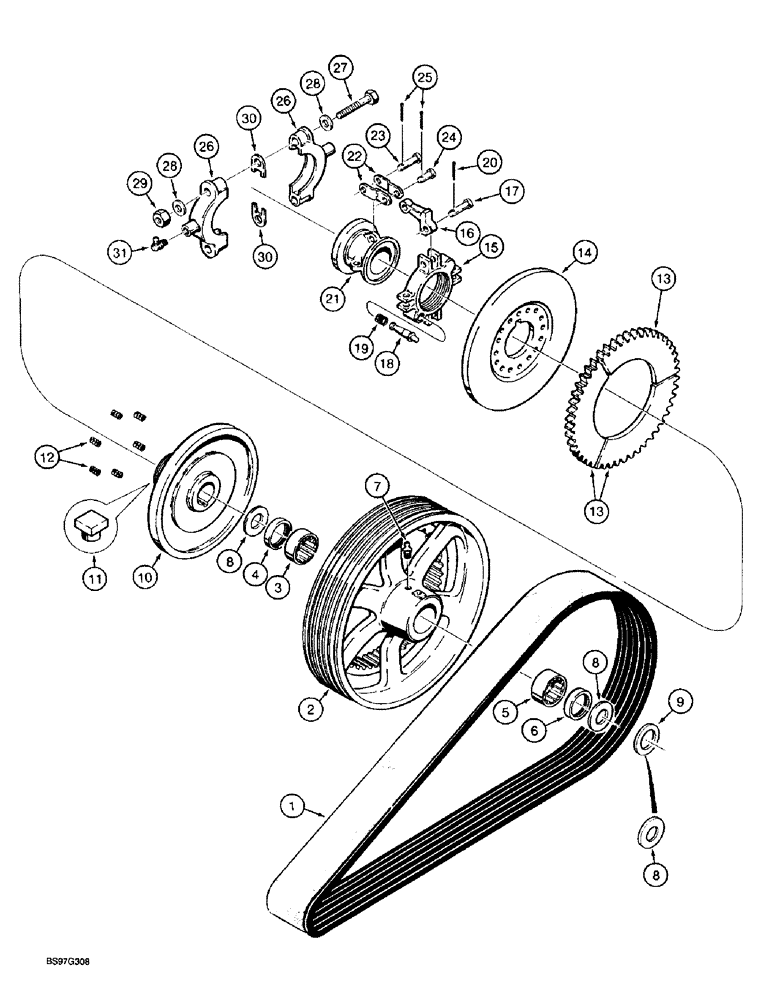

Запчасти Case TF300 (9-14) - TRENCHER DRIVE BELT AND CLUTCH (09) - CHASSIS/ATTACHMENTS

1

H208298

V-BELT,39.60 mm W x 1360.00 mm L, 5 Ribs

Drive, Used on Models with Wisconsin or Lister Engines, if Used 39.60 mm W x 1360.00 mm L, 5 Ribs

1шт.

1

H209015

V-BELT

Drive, Used on Models with Deutz Engine, if Used

1шт.

SET OF 3 MATCHED BELTS IS P/N H68890.

1шт.

H584995

SHEAVE

ASSEMBLY - driven, clutch, Includes: Ref. 2 - 7

1шт.

2

H179614

SHEAVE

- driven

1шт.

3

H747998

NEEDLE BEARING

BEARING - needle, sheave, clutch side

1шт.

4

H749234

SEAL

SEAL - needle bearing, clutch side

1шт.

5

H748178

NEEDLE BEARING

BEARING - needle, sheave, jackshaft side

1шт.

6

564808R91

WIPER

SEAL - needle bearing, jackshaft side

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

8

H68015

WASHER

- thrust, special, sheave, one thrust washer must be used on each side of the sheave, additional thrust washers may be used as spacers

1шт.

9

H81760

WASHER

- flat, spacer, used in production on some models, replace with Ref. 8 thrust washers as needed

1шт.

H559054

CLUTCH ASSEMBLY

- trencher, assembly no longer available, order parts as needed, Includes: Ref. 10 - 30

1шт.

10

H559062

HUB CAP

HUB - plate, clutch

1шт.

11

H111161

AXLE PIN

PIN - hub

1шт.

12

H111260

VALVE SPRING

SPRING - releasing, clutch

6шт.

13

N14252

PLATE

- driving, clutch, consists of 3 segments, replaces 2 segment plate

1шт.

14

H189050

PLATE ASSY.

PLATE - floating, clutch

1шт.

H529362

YOKE

ASSEMBLY - adjusting, clutch

1шт.

15

NSS

NOT SOLD SEPARAT

YOKE - adjusting

1шт.

16

H111179

LEVER

- yoke

4шт.

17

H111187

AXLE PIN

PIN - clevis, Serial Range: lever-yoke

4шт.

18

H111195

AXLE PIN

PIN - adjusting lock

1шт.

19

A26944

VALVE SPRING

SPRING - adjusting lock pin

1шт.

20

A43382

PIN, SPLIT (COTTER)

PIN - cotter, 1/8 x 1/2 inch long, special, pin retaining

4шт.

H529370

CLUTCH ASSEMBLY

SLEEVE ASSEMBLY - sliding, clutch

1шт.

21

H142125

SLEEVE

- sliding

1шт.

22

F11937

DRAG LINK

LINK - lever

8шт.

23

H111229

AXLE PIN

PIN - clevis, Serial Range: link-sleeve

4шт.

24

F11938

AXLE PIN

PIN - clevis, Serial Range: link-lever

4шт.

25

A43382

PIN, SPLIT (COTTER)

PIN - cotter, 1/8 x 1/2 inch long, special

8шт.

A31140

COLLAR

ASSEMBLY - clutch sleeve

1шт.

26

NSS

NOT SOLD SEPARAT

COLLAR - sleeve

2шт.

27

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex, 3/8 NF x 1-3/4 inch

2шт.

28

D48341

WASHER

- special

4шт.

29

230-4616

LOCK NUT,3/8"-24, GA

NUT - hex, self-locking, 3/8 inch NF

2шт.

30

NSS

NOT SOLD SEPARAT

SPACER - collar

1шт.

31

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
