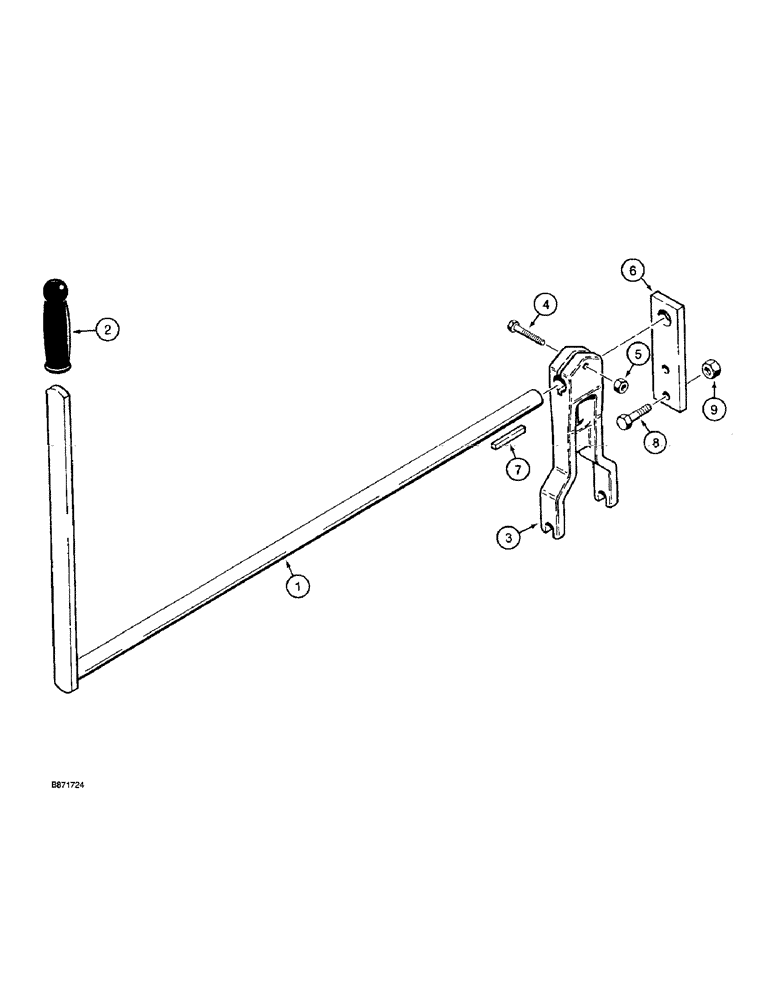

Запчасти Case TF300 (9-12) - TRENCHER CLUTCH CONTROL LEVER AND FORK (09) - CHASSIS/ATTACHMENTS

1

H528380

SHAFT

LEVER - control, trencher clutch

1шт.

2

H33332

GRIP

- handle, control lever

1шт.

3

H379255

HOUSING

FORK - clutch

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

6

H161760

SHAFT

BRACKET - shaft mounting, bolts to trencher shield plate

1шт.

7

H33290

KEY

- square, 1/4 x 2-1/4 inch long, shaft retaining

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.
