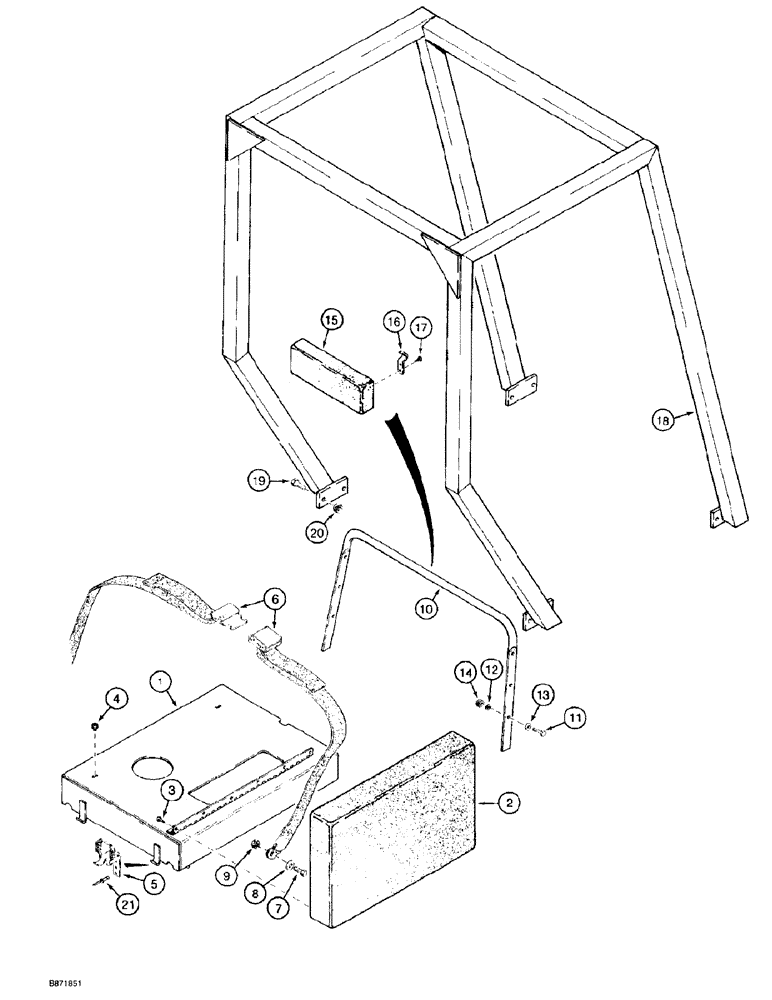

Запчасти Case TF300 (9-08) - GRAB HANDLE, SEAT, AND ROPS (09) - CHASSIS/ATTACHMENTS

1

H585703

MOUNTING PARTS

SUPPORT - seat

1шт.

2

H429225

CUSHION

- seat, brown

1шт.

2

179339A1

CUSHION

- seat, gray

1шт.

3

186-58

SCREW

- wood, round slotted, No. 10 NC x 3/4 inch

6шт.

4

H66522

BUMPER

- rubber, seat mount

2шт.

5

H64683

LATCH ASSY.

LATCH - seat mount to rear frame

2шт.

6

D75997

SAFETY BELT ,1.80" W

Used on models with ROPS only 1.80" W

1шт.

7

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

8

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

2шт.

9

230-4717

LOCK NUT,7/16"-20, GA

NUT - hex, self-locking, 7/16 inch NF

2шт.

10

H297929

HANDLE

- grab

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

6шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6-12шт.

14

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

6шт.

15

H433031

BACKREST

CUSHION - backrest, brown, used on models with backfill blade only

1шт.

15

179340A1

CUSHION, SEAT

CUSHION - backrest, gray, used with backfill blade only

1шт.

16

H122648

CLAMP

- backrest cushion

2шт.

17

186-58

SCREW

- wood, round slotted, No. 10 NC x 3/4 inch

4шт.

18

H658062

ROPS - canopy, order from Machinery Price List, if used

1шт.

19

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

20

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

8шт.

21

157-159

RIVET,Truss Hd, 3/16" x 3/8"

- truss head, 3/16 x 3/8 inch

1шт.

If looking for the box that holds the service manual use R46464

1шт.
