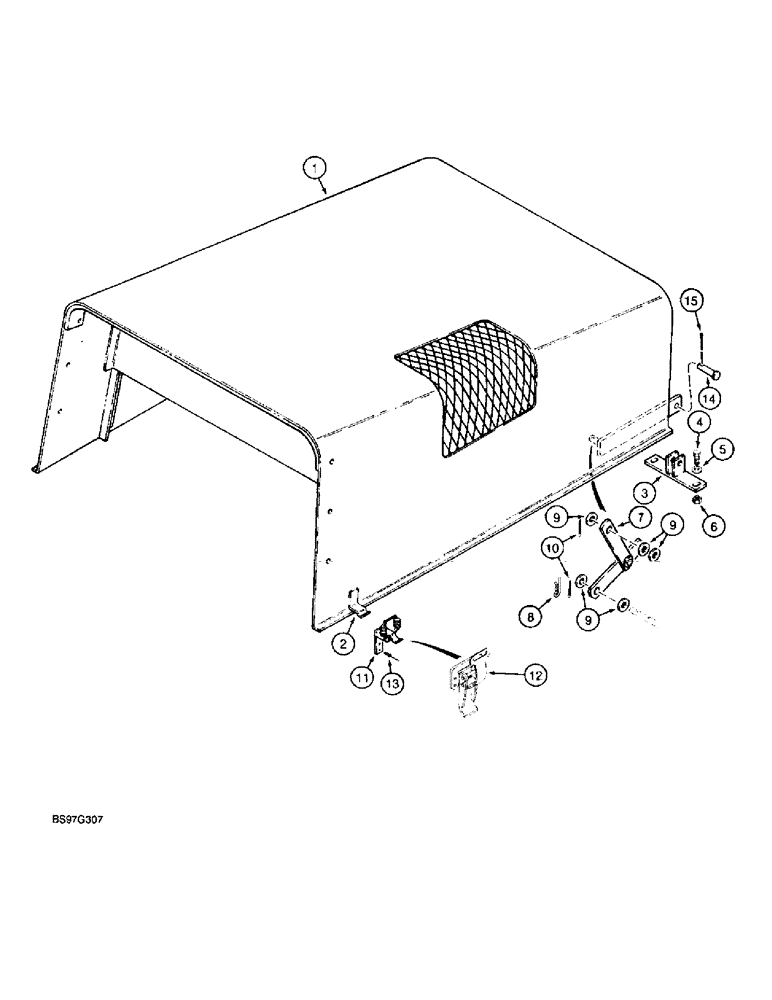

Запчасти Case TF300 (9-06) - HOOD (09) - CHASSIS/ATTACHMENTS

1

H528240

HOOD

ASSEMBLY - used on models with Wisconsin engine only, Includes: Ref. 2

1шт.

1

H534586

HOOD

ASSEMBLY - used on models with Lister engine only, not shown, Includes: Ref. 2

1шт.

1

H534594

HOOD ASSEMBLY - used on models with Deutz engine only, not shown, Includes: Ref. 2

1шт.

2

H66548

LOCK ASSY

LATCH - hood

1шт.

3

H579151

HINGE

BRACKET - hood hinge

2шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

7

H532168

RETAINER

- hood

1шт.

8

S120261

PIN

- hair

1шт.

9

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

11

H64683

LATCH ASSY.

LATCH - hood, if used

2шт.

12

H438597

LATCH

- hood, if used

2шт.

13

151-506

RIVET,Pop, 1/8" x .400", Stainless

- break mandrel, 1/8 x 3/8 inch

1шт.

14

H114017

AXLE PIN

PIN - clevis, 3/8 x 1-1/2 inch, used on models with Lister engine only, not shown

2шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , Used on models with Lister engine only, not shown 1/8" x 3/4"

2шт.
