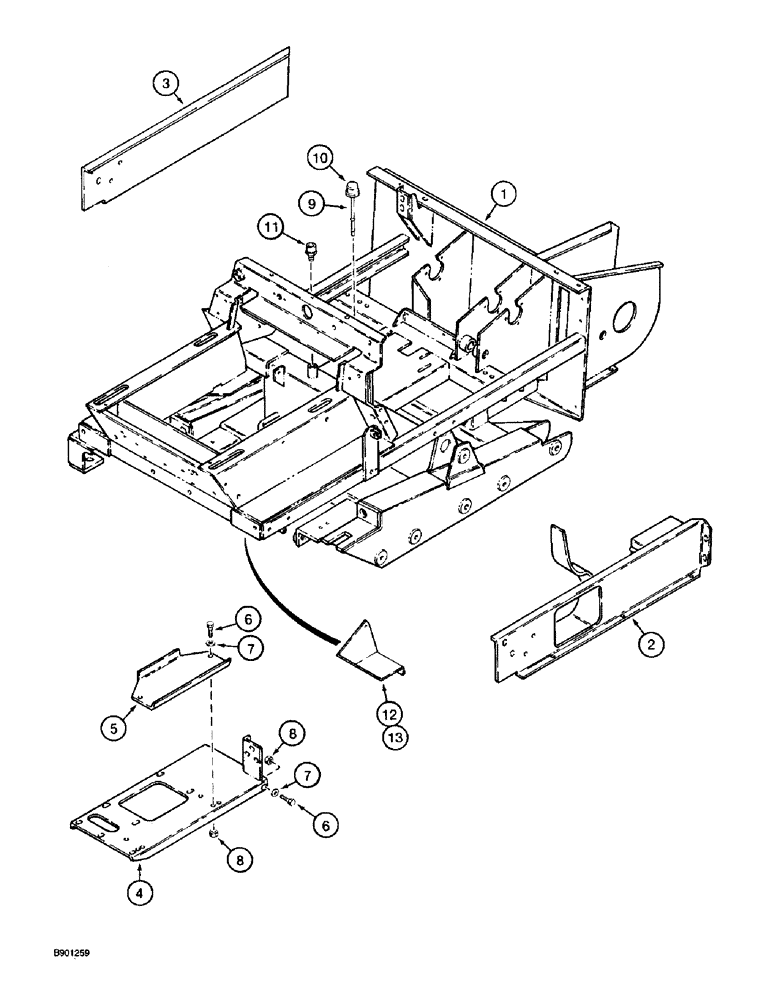

Запчасти Case TF300 (9-04) - CHASSIS AND SIDE PANELS, USED ON MODELS WITH RUBBER TRACKS (09) - CHASSIS/ATTACHMENTS

1

H673890

CHASSIS

- tractor

1шт.

2

H529172

PANEL

- access, right-hand

1шт.

3

H108811

PANEL

- access, left-hand

1шт.

4

H585695

LARGE PLATE

PLATE ASSEMBLY - mounting, fuel tank and battery, Includes: Ref. 5

1шт.

5

H98970

BASE

PLATE - battery mounting

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

5шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

5шт.

8

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

5шт.

9

H544957

DIPSTICK

- hydraulic reservoir, Includes: Ref. 10

1шт.

10

H148536

CAP

- dipstick

1шт.

11

A75179

BREATHER

- reservoir

1шт.

12

H608000

SKID/SHOE

PLATE - foot, right-hand side

1шт.

13

H607994

SKID/SHOE

PLATE - foot, left-hand side, not shown

1шт.
