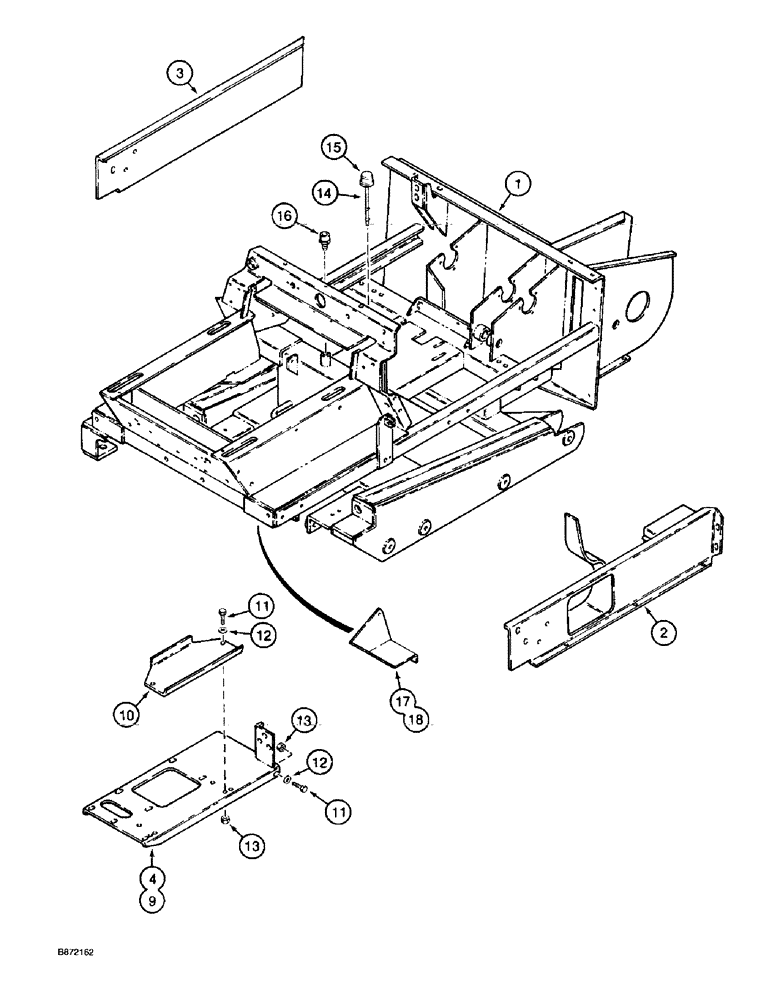

Запчасти Case TF300 (9-02) - CHASSIS AND SIDE PANELS, USED ON MODELS WITH STEEL TRACKS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H585612
CHASSIS
- tractor, used on models with Wisconsin engine only
1шт.
1
H592014
CHASSIS
- tractor, used on models with Deutz and Lister engine only
1шт.
2
H529172
PANEL
- access, right-hand, used on models with Wisconsin engine only
1шт.
2
H534529
PANEL ASSY.
PANEL - access, right-hand, used on models with Lister engine only, not shown
1шт.
2
H534545
PANEL
- access, right-hand, used on models with Deutz engine only, not shown
1шт.
3
H108811
PANEL
- access, left-hand, used on models with Wisconsin engine only
1шт.
3
H534511
PANEL ASSY.
PANEL - access, left-hand, used on models with Lister engine only, not shown
1шт.
3
H534537
PANEL
- access, left-hand, used on models with Deutz engine only, not shown
1шт.
4
H666768
PLATE
- mounting
1шт.
5
H534487
PANEL - front engine, used on models with Deutz and Lister engine only, not shown
1шт.
6
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch, used with Ref. 5 panel
4шт.
7
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Used with Ref. 5 panel
4шт.
8
230-4215
NUT,5/16"-18, GA
NUT - hex, self-locking, 5/16 inch NC, Used with Ref. 5 panel
4шт.
9
H585695
LARGE PLATE
PLATE ASSEMBLY - mounting, fuel tank and battery, Includes: Ref. 10
1шт.
10
H98970
BASE
PLATE - battery mounting
1шт.
11
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
5шт.
12
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
5шт.
13
230-4215
NUT,5/16"-18, GA
NUT - hex, self-locking, 5/16 inch NC
5шт.
14
H544957
DIPSTICK
- hydraulic reservoir, Includes: Ref. 15
1шт.
15
H148536
CAP
- dipstick
1шт.
16
A75179
BREATHER
- reservoir
1шт.
17
H608000
SKID/SHOE
PLATE - foot, right-hand side
1шт.
18
H607994
SKID/SHOE
PLATE - foot, left-hand side, not shown
1шт.
per paper cat., grease fittings on boss's inside of plate are 219-11 quan 2 needed
1шт.
