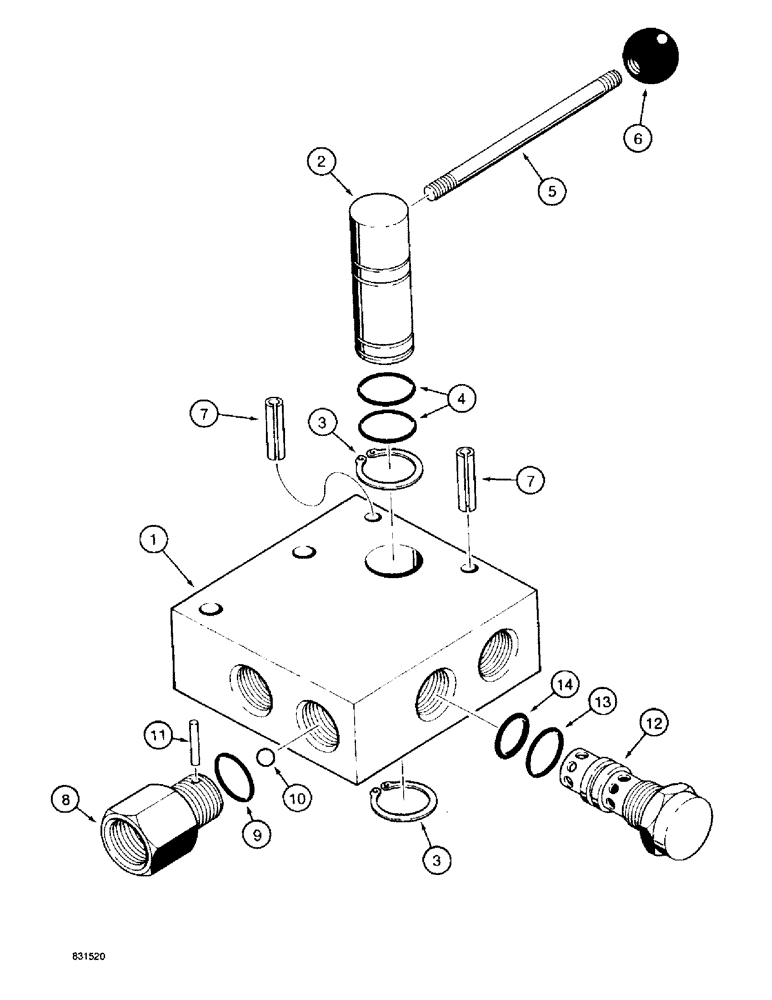

Запчасти Case TF300 (8-48) - REMOTE HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

H582064

VALVE

ASSEMBLY - remote hydraulic control, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

3

100-1187

SNAP RING,#87, Ext

Ring, Snap, , Spool #87, Ext

2шт.

4

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

5

H249847

HANDLE

- valve

1шт.

6

H249839

KNOB

- handle

1шт.

7

38-11616

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

2шт.

H584557

VALVE

ASSEMBLY - check, control valve, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - check valve

1шт.

9

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

10

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - nylon, check valve

1шт.

12

H584326

VALVE

- relief

1шт.

13

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Large -118, 70 Duro, .862" ID x .103" Thk

1шт.

14

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Small -116, 70 Duro, .737" ID x .103" Thk

1шт.
