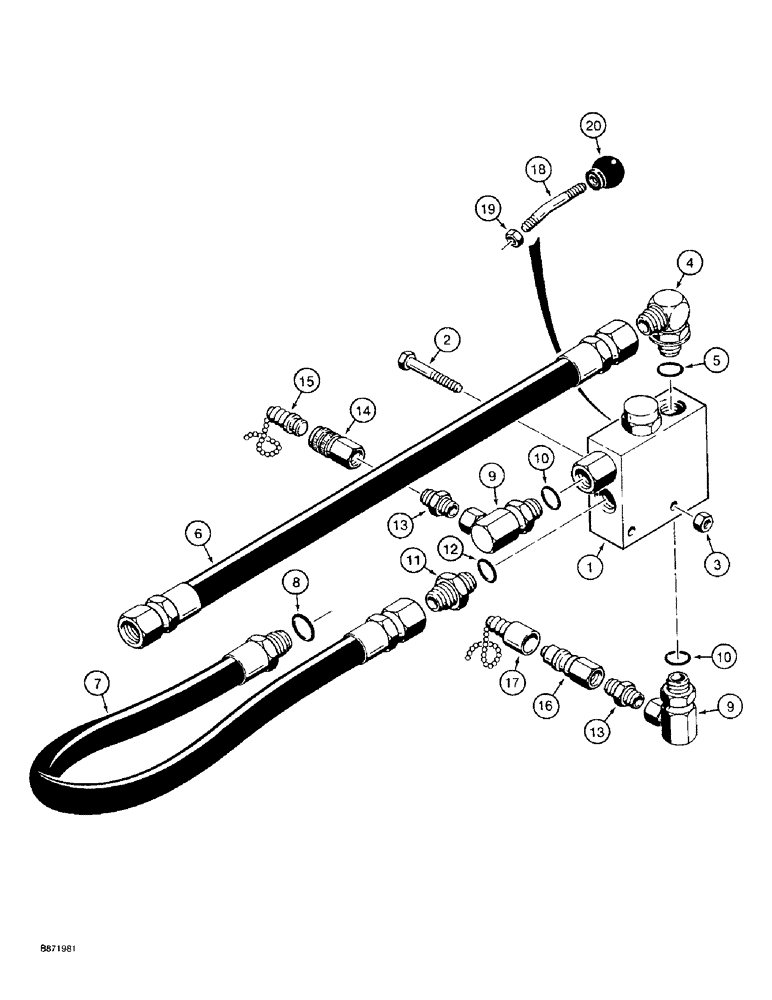

Запчасти Case TF300 (8-46) - REMOTE HYDRAULIC CONTROL VALVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H582064

VALVE

ASSEMBLY - remote hydraulic control (See Figure 8-48)

1шт.

2

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

3

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

4

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

H200287

HOSE ASSY.

HOSE - 457 mm (18 inch) long, remote hydraulic control valve to ground drive and boom control valve

1шт.

7

H46854

HOSE

- 241 mm (9-1/2 inch) long, remote hydraulic control valve to ground drive pump, Includes: Ref. 8

1шт.

8

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

9

218-5387

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 3/8" NPSM Fem

- 90 degree, 3/4-16 adj O-ring x 3/8 inch swivel str pipe

2шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

217-1192

ADAPTER,3/8"-18 NPTF x 3/8"-18 NPSM

- straight, 3/8 inch PT

2шт.

14

H245993

COUPLING

COUPLER - female

1шт.

15

H248526

PLUG

- dust, for female coupler

1шт.

16

H246009

NIPPLE, LUBE

COUPLER - male

1шт.

17

H248518

CAP

- dust, for male coupler

1шт.

18

H249847

HANDLE

- valve, PTO control

1шт.

19

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

20

H249839

KNOB

- handle

1шт.
