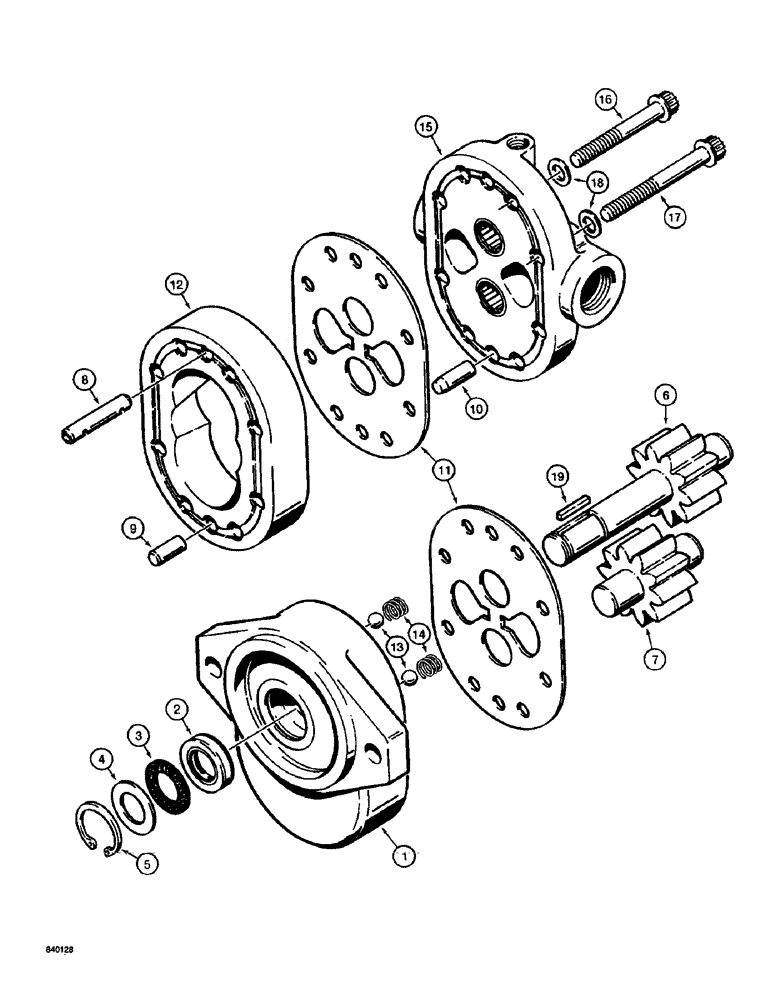

Запчасти Case TF300 (8-42) - HYDRA-BORER MOTOR ASSEMBLY, H525527 (08) - HYDRAULICS

H525527

MOTOR HOUSING

MOTOR ASSEMBLY - Hydra-Borer, assembly no longer available, order H654814 motor assembly (See figure 8-44) and 221-84 reducer for the drain port in H654814 motor, Includes: Ref. 1 - 19

1шт.

1

H103002

PLATE ASSY.

HOUSING - drive shaft end

1шт.

2

H263608

SEAL

- shaft, output

1шт.

Part of seal kit P/N H599704

1шт.

3

A41346

RING

- backup, special

1шт.

Part of seal kit P/N H599704

1шт.

4

H94490

WASHER

- special

1шт.

Part of seal kit P/N H599704

1шт.

5

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, , Seal 1.125", Int, #112

1шт.

Part of seal kit P/N H599704

1шт.

6

H52019

GEAR WHEEL

GEAR - drive, motor assembly

1шт.

7

H52027

SHAFT

GEAR - driven, motor assembly

1шт.

8

H47746

DOWEL

PIN - dowel, upper, gear housing

1шт.

9

H358754

PIN

- housing, lower, shaft end cover to gear housing

1шт.

10

H395111

PIN

- dowel, lower, port end housing to gear housing

1шт.

11

H31328

PLATE ASSY.

PLATE - thrust

2шт.

Part of seal kit P/N H599704

1шт.

12

H47753

BODY

HOUSING - gear

1шт.

13

211-1013

BALL,10.31mm OD, Gr 24

- chrome alloy steel, 13/32 inch, grade 24

2шт.

Part of seal kit P/N H599704

1шт.

14

H104406

SPRING

- ball

2шт.

Part of seal kit P/N H599704

1шт.

15

H501494

PLATE ASSY.

HOUSING - port end

1шт.

16

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

BOLT - 12 point flange, 5/16 NC x 2-3/4 inch, grade 8

4шт.

17

166-35

12 PT SCREW,Flg, 5/16" - 18 x 3 1/4", Gr 8

BOLT - 12 point flange, 5/16 NC x 3-1/4 inch, grade 8

4шт.

18

F10897

WASHER

- copper

8шт.

Part of seal kit P/N H599704

1шт.

19

H415158

BUCKET TOOTH KEY

KEY - drive shaft

1шт.

H599704

KIT

- seal, Includes: Refs. 2 - 5, 11, 13, 14 and 18

1шт.
