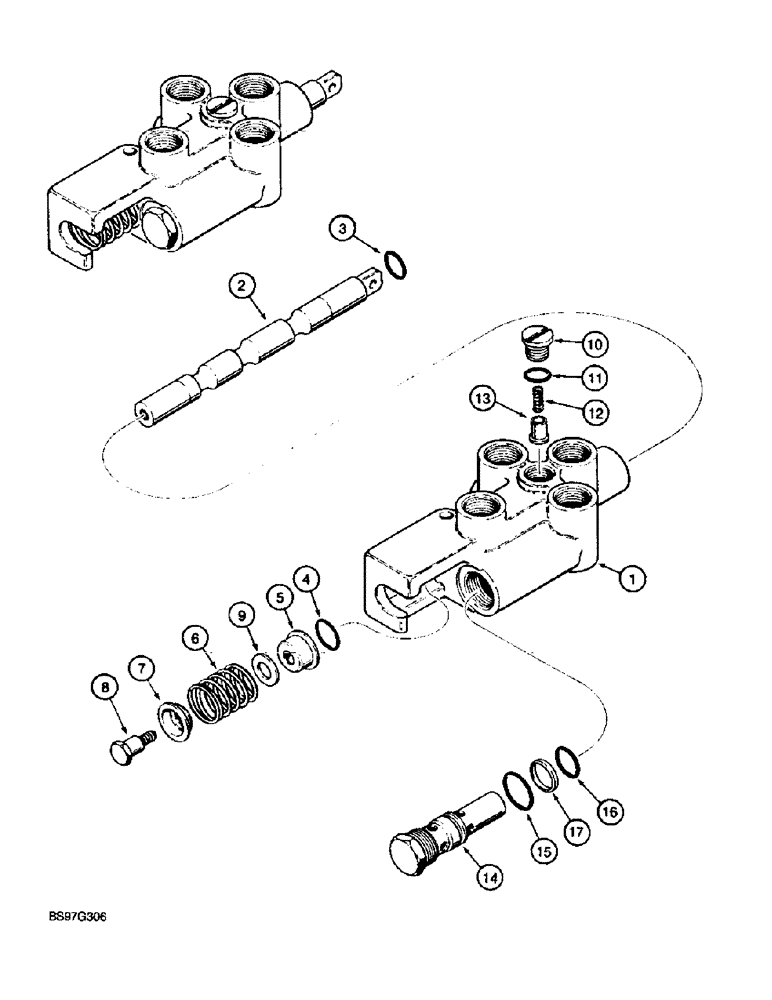

Запчасти Case TF300 (8-40) - HYDRA-BORER CONTROL VALVE ASSEMBLY, 3 POSITION SPRING (08) - HYDRAULICS

107110A1

VALVE

ASSEMBLY - control, attachment, one spool, Cessna No. 30501-CAQ, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

T55119

SPOOL

- valve

1шт.

3

114314A1

O-RING

- spool, eye end

1шт.

4

114313A1

O-RING

- spool, plug end

1шт.

5

H52902

CAP

RETAINER - spring, inner

1шт.

6

H52928

VALVE SPRING

SPRING - centering, spool

1шт.

7

F59116

WASHER

SEAT - spring, outer

1шт.

8

H428292

SCREW,1/4" - 20 x 0.972"

BOLT - hex, special

1шт.

9

H746164

WASHER

- special, 4 mm (5/32 inch) thick

1шт.

H47506

PLUG

ASSEMBLY - load check valve, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

11

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

12

FH730374

SPRING

- load check valve

1шт.

13

FH730366

PLUNGER

POPPET - load check valve

1шт.

N8813

LOCK VALVE

VALVE ASSEMBLY - relief, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - relief, control valve

1шт.

15

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Outer -116, 70 Duro, .737" ID x .103" Thk

1шт.

16

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Inner -114, 70 Duro, .612" ID x .103" Thk

1шт.

17

G32626

RING

- backup, inner O-ring

1шт.
