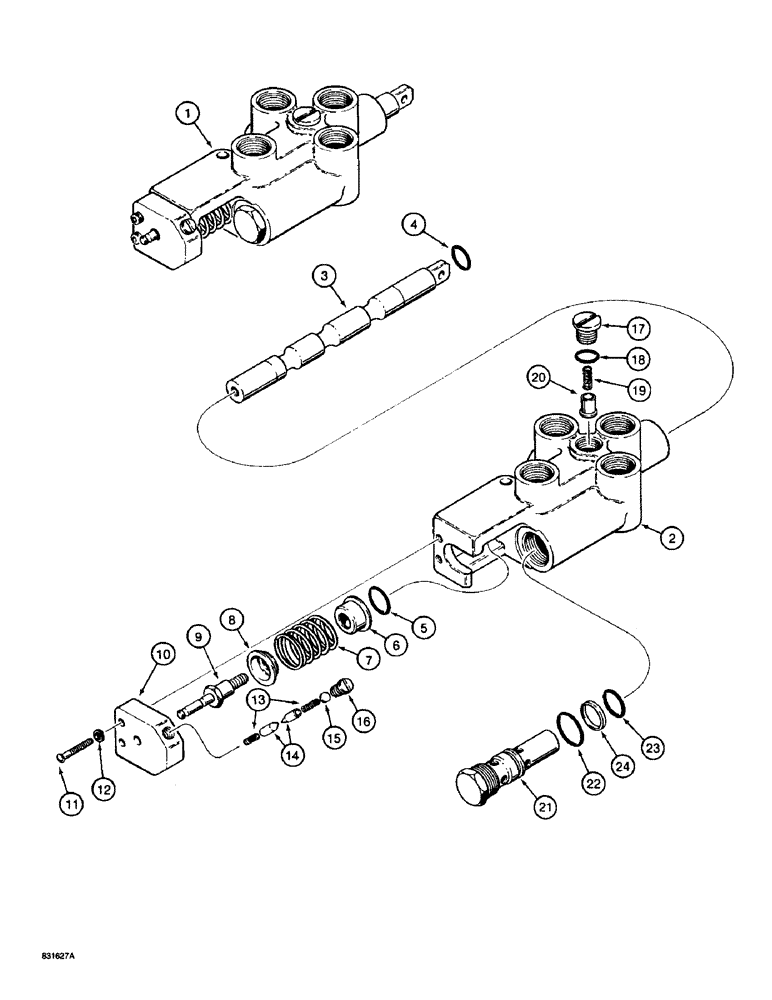

Запчасти Case TF300 (8-38) - HYDRA-BORER CONTROL VALVE ASSEMBLY, 2 POSITION DETENT VALVE (08) - HYDRAULICS

1

H544718

LOCK VALVE

VALVE ASSEMBLY - control, attachment, one spool, one each used for trencher and Hydra-Borer options, Includes: Ref. 2 - 24

1-2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

4

F37887

O-RING

- spool eye end

1шт.

Part of seal replacement kit P/N H125864

1шт.

5

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Spool plug end -114, 70 Duro, .612" ID x .103" Thk

1шт.

Part of seal replacement kit P/N H125864

1шт.

6

H138271

WASHER

RETAINER - spring, inner

1шт.

7

H52928

VALVE SPRING

SPRING - centering, spool

1шт.

8

F59116

WASHER

SEAT - spring, outer

1шт.

9

H152157

SCREW

- spool end, detent

1шт.

10

H125831

BLOCK

- detent

1шт.

11

173-239

SCREW

- machine, round head slotted, 1/4 NC x 1 inch

2шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

H105049

SPRING

- detent

2шт.

14

H104992

PAWL

DETENT - spool

2шт.

15

H141788

DISC

- detent

1шт.

16

H105015

PLUG

- detent retaining

1шт.

H47506

PLUG

ASSEMBLY - load check valve, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

18

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

Part of seal replacement kit P/N H125864

1шт.

19

FH730374

SPRING

- load check valve

1шт.

20

FH730366

PLUNGER

POPPET - load check valve

1шт.

N8813

LOCK VALVE

VALVE ASSEMBLY - relief, control valve, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - relief, control valve

1шт.

22

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Outer -116, 70 Duro, .737" ID x .103" Thk

1шт.

Part of seal replacement kit P/N H125864

1шт.

23

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Inner -114, 70 Duro, .612" ID x .103" Thk

1шт.

Part of seal replacement kit P/N H125864

1шт.

24

G32626

RING

- backup, inner O-ring

1шт.

Part of seal replacement kit P/N H125864

1шт.

H125864

KIT

- seal replacement, Includes: Refs. 4, 5, 18, 22, 23 and 24

1шт.
