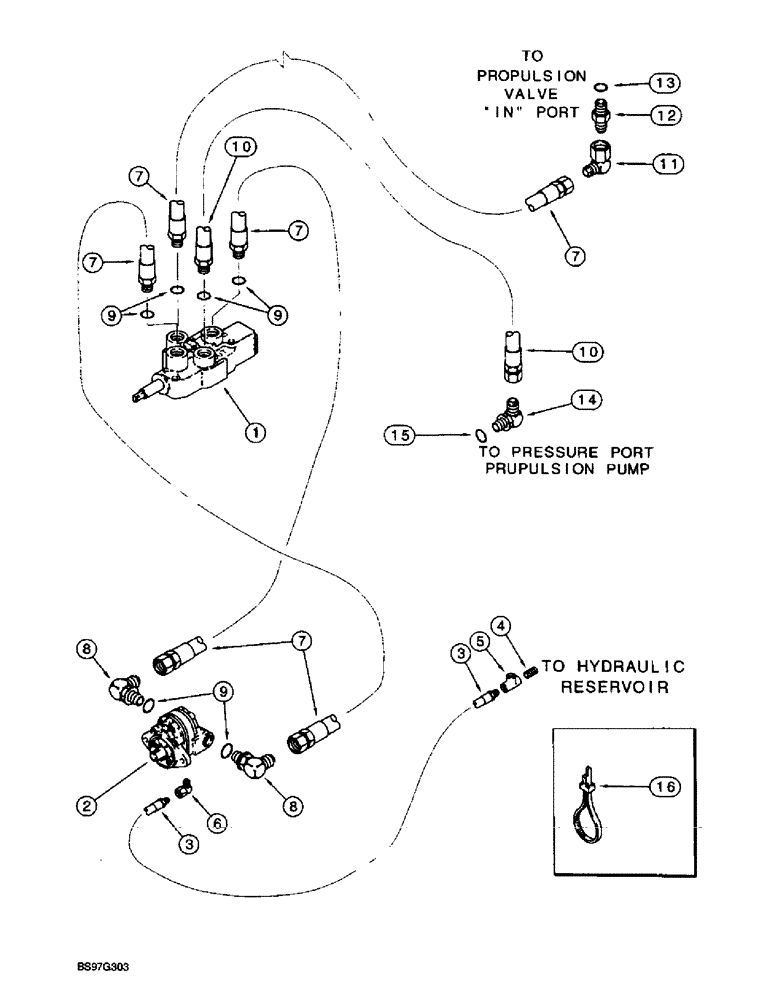

Запчасти Case TF300 (8-34) - HYDRA-BORER HYDRAULIC CIRCUIT, 3 POSITION SPRING CENTERED (08) - HYDRAULICS

1

107110A1

VALVE

ASSEMBLY - control, Hydra-Borer, (See Figure 8-40)

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - Hydra-Borer (See Figures 8-42 and 8-44), for mounting hardware see Figure 9-70

1шт.

3

H71407

HOSE,0.25" ID x 39.00"

1шт.

4

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - straight, 1/4 PT x 7/8 inch

1шт.

5

221-1422

TEE,Pipe, 1/4" NPT

- 1/4 inch NPT

1шт.

6

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree, 1/8 inch PT x swivel str pipe

1шт.

7

H34686

HOSE ASSY.

HOSE - 610 mm (24 inch) long

3шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.

10

H257113

HYDRAULIC HOSE,12.70 mm ID x 1600.20 mm, SAE 100R1

12.70 mm ID x 1600.20 mm, SAE 100R1

1шт.

11

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
