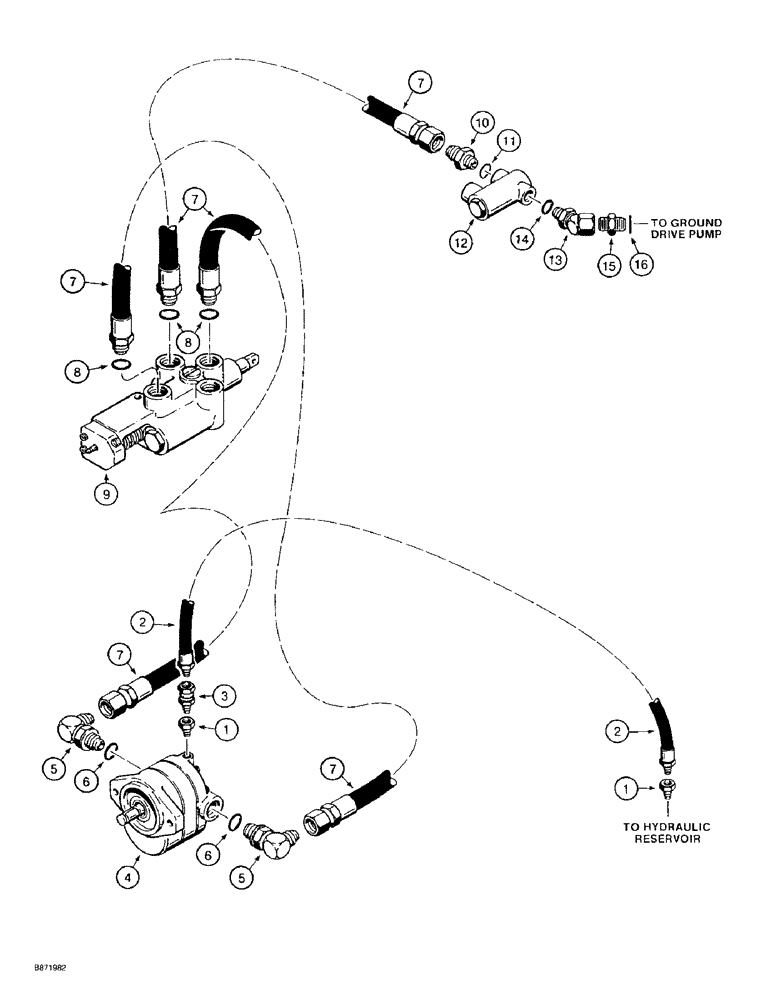

Запчасти Case TF300 (8-32) - HYDRA-BORER HYDRAULIC CIRCUIT, 2 POSITION DETENT VALVE (08) - HYDRAULICS

1

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

2шт.

2

H106385

HOSE

- 508 mm (20 inch) long, return, hydraulic reservoir to Hydra-Borer motor

1шт.

3

218-909

HYD CONNECTOR,1/8" NPT x 1/4" NPSM Fem

ADAPTER - straight, 1/8 PT x 1/4 inch swivel str pipe

1шт.

4

REF

INSTRUCTION

MOTOR ASSEMBLY - Hydra-Borer, (See Figures 8-42 and 8-44), for mounting hardware see Figure 9-70

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

H34686

HOSE ASSY.

HOSE - 610 mm (24 inch) long, Includes: Ref. 8

3шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

H544718

LOCK VALVE

VALVE ASSEMBLY - control, Hydra-Borer, (See Figure 8-38), for mounting hardware see Figure 9-68

1шт.

10

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

H542910

LOCK VALVE

VALVE ASSEMBLY - relief (See Figure 8-26)

1шт.

13

218-5327

ELBOW,45 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- 45 degree, 3/4-16 adj O-ring x 1/2 inch swivel str pipe, Includes: Ref. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

218-5406

HYD CONNECTOR,7/8"-14 Male ORB x 1/2" NPSM

ADAPTER - straight, 7/8-14 O-ring x 1/2 inch PT, Includes: Ref. 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
