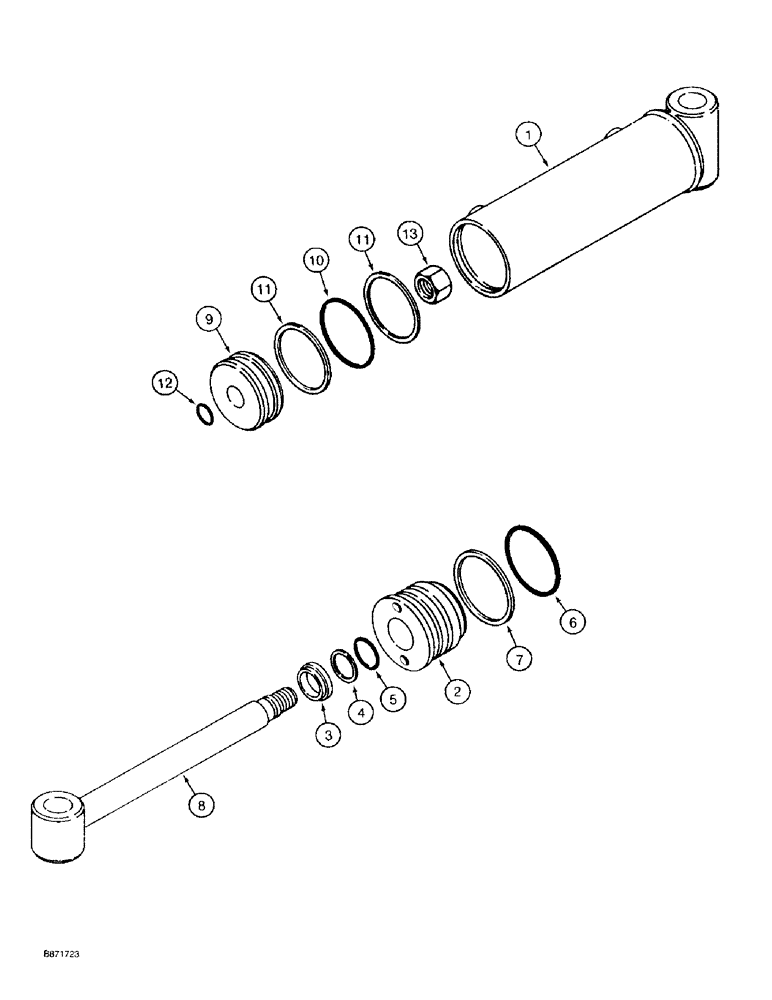

Запчасти Case TF300 (8-30) - BACKFILL BLADE ANGLE CYLINDER (08) - HYDRAULICS

H586172

CYLINDER

ASSEMBLY - 76 mm (3) ID x 146 mm (5-3/4 inch) stroke, backfill blade angle, Replaced by 395493A1 (See below), Includes: Ref. 1 - 13, Serial Range: -JAF0365000

1шт.

Complete cylinder is interchangeable, components are not.

1шт.

1

H594978

JACK BODY

TUBE - cylinder

1шт.

2

H223362

GLAND

- cylinder

1шт.

3

H223271

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit P/N H571133

1шт.

4

T22277

OIL SEAL

RING - backup, inner gland O-ring, piston rod

1шт.

Part of seal kit P/N H571133

1шт.

5

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Inner gland, piston rod -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

Part of seal kit P/N H571133

1шт.

6

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

Outer gland -232, 70 Duro, 2.734" ID x .139" Thk

1шт.

Part of seal kit P/N H571133

1шт.

7

H223263

ELECTRICAL WIRE

RING - lock, gland

1шт.

Part of seal kit P/N H571133

1шт.

8

H594960

ASSEMBLY

ROD - piston, 32 mm (1-1/4 inch) diameter

1шт.

9

H223073

PISTON ASSY.

PISTON - cylinder

1шт.

10

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

Outer -334, 70 Duro, 2.6" ID x .210" Thk

1шт.

Part of seal kit P/N H571133

1шт.

11

H754614

WASHER

RING - backup, piston O-ring, outer

2шт.

Part of seal kit P/N H571133

1шт.

12

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk, Rod end

1шт.

Part of seal kit P/N H571133

1шт.

13

230-46116

LOCK NUT,1"-14, GA

NUT - hex, self-locking, 1-14 inch

1шт.

H571133

SEAL ASSY.

KIT - seal, Includes: Refs. 3 - 7, 10, 11 and 12

1шт.

395493A1

CYLINDER

ASSEMBLY Replaces H586172 Cylinder, Start Serial: JAF0365000

1шт.

93320C1

PISTON

component of 395493A1

1шт.

397840A1

JACK BODY

TUBE component of 395493A1

1шт.

397843A1

ASSEMBLY

ROD component of 395493A1

1шт.

397844A1

GLAND component of 395493A1

1шт.

397845A1

SEAL KIT

seal, component of 395493A1

1шт.

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Component of 395493A1) 7/8"-14, GC

1шт.

381873A1

GLAND LOCK RING component of 395493A1

1шт.
