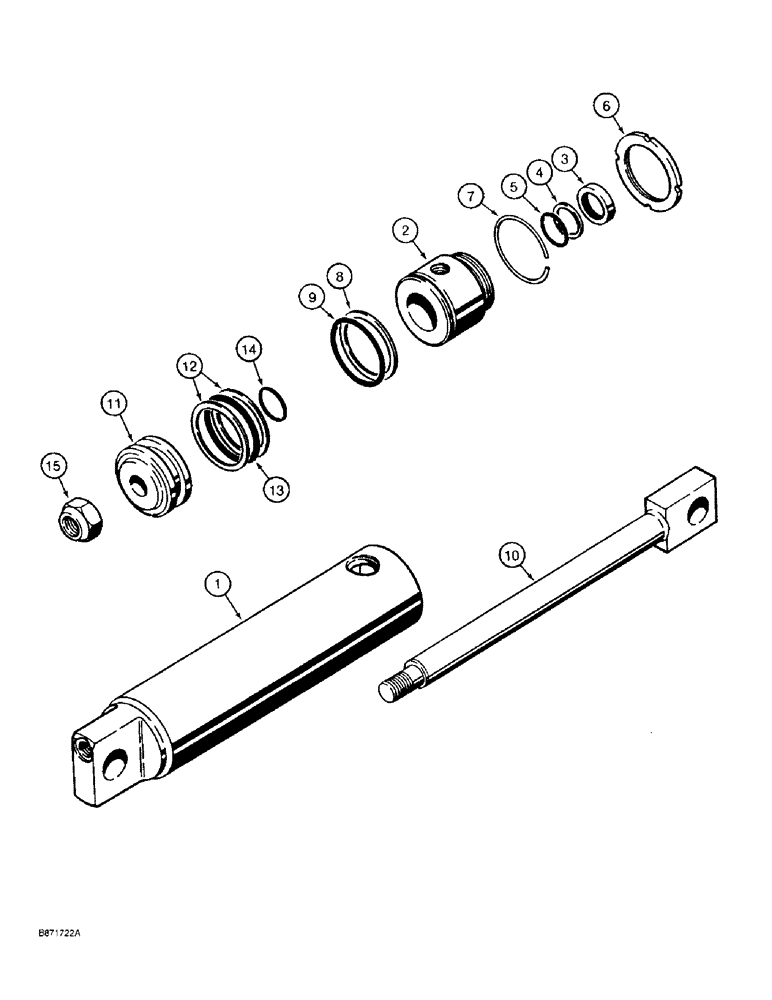

Запчасти Case TF300 (8-28) - BACKFILL BLADE LIFT OR TRENCHER BOOM LIFT CYLINDER (08) - HYDRAULICS

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, backfill blade or trencher boom lift, if used, Includes: Ref. 1 - 15

2шт.

1

H72215

SLEEVE CYLINDER

TUBE - cylinder

1шт.

2

H70078

BEARING

GLAND - cylinder

1шт.

3

H220475

WIPER SEAL

WIPER - rod

1шт.

Part of seal replacement kit P/N H507350

1шт.

4

A35899

RING

- backup, small O-ring, gland inner, piston rod

1шт.

Part of seal replacement kit P/N H507350

1шт.

5

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Gland inner, piston rod -214, 70 Duro, .984" ID x .139" Thk

1шт.

Part of seal replacement kit P/N H507350

1шт.

6

H745786

BEARING LOCK NUT

- gland locking

1шт.

7

A35898

RING, SNAP

RING - retaining, gland

1шт.

Part of seal replacement kit P/N H507350

1шт.

8

A35901

RING

- backup, gland O-ring, outer

1шт.

Part of seal replacement kit P/N H507350

1шт.

9

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Gland, outer -228, 70 Duro, 2.234" ID x .139" Thk

1шт.

Part of seal replacement kit P/N H507350

1шт.

10

H66571

ROD

- piston, 25 mm (1 inch) diameter

1шт.

11

A35897

PISTON ASSY.

PISTON - cylinder

1шт.

12

A35810

RING

- backup, piston seal, outer

2шт.

Part of seal replacement kit P/N H507350

1шт.

13

238-5330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

Piston, outer -330, 70 Duro, 2.1" ID x .210" Thk

1шт.

Part of seal replacement kit P/N H507350

1шт.

14

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Piston, inner -214, 70 Duro, .984" ID x .139" Thk

2шт.

Part of seal replacement kit P/N H507350

1шт.

15

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

H507350

GASKET KIT

KIT - seal replacement, Includes: Refs. 3, 4, 5, 7, 8, 9, 12, 13 and 14

1шт.
