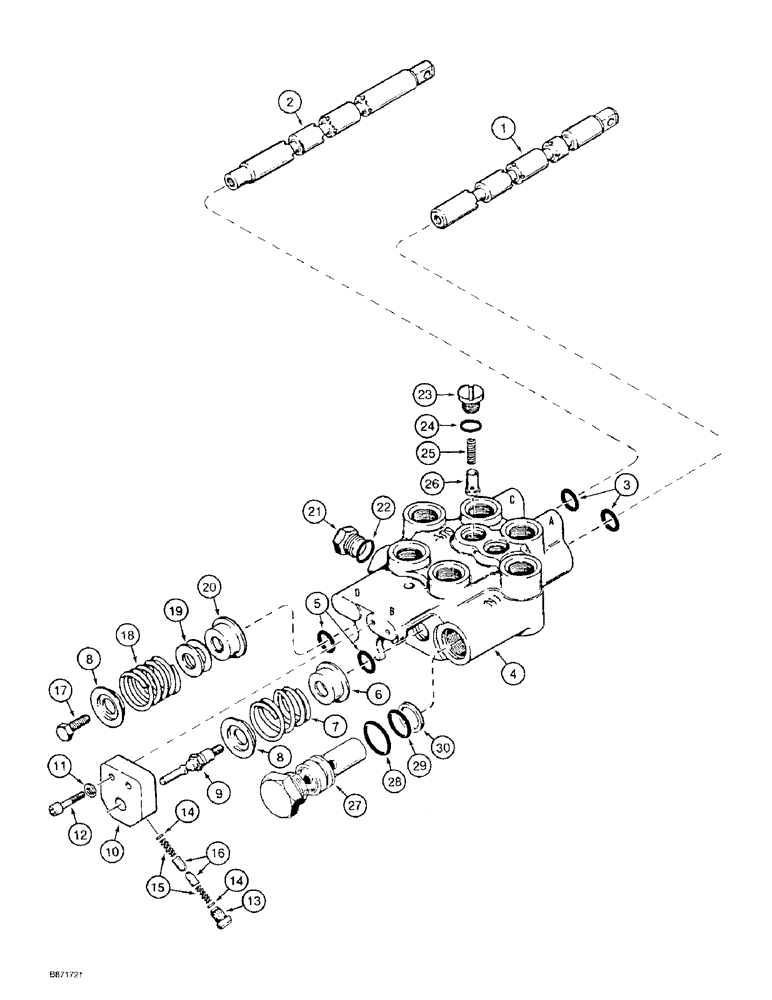

Запчасти Case TF300 (8-24) - BACKFILL BLADE CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
H567487
VALVE
ASSEMBLY - control, backfill blade, Includes: Ref. 1 - 30
1шт.
1
NSS
NOT SOLD SEPARAT
SPOOL - lift
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - angle
1шт.
3
F37887
O-RING
- spool, eye end
2шт.
4
NSS
NOT SOLD SEPARAT
BODY - control valve
1шт.
5
238-5114
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
Spool, spring end -114, 70 Duro, .612" ID x .103" Thk
2шт.
6
H138271
WASHER
RETAINER - spring, lift spool, upper
1шт.
7
F59118
SPRING
- centering, lift spool
1шт.
8
F59116
WASHER
SEAT - spring, lift and angle spools, lower
2шт.
9
H139071
SCREW,1/4" - 20
STUD - spool end, special, detent
1шт.
10
H125831
BLOCK
- detent
1шт.
11
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
12
61-32516
HEX SOC SCREW,1/4"-20 x 1"
BOLT - hex socket, 1/4 NC x 1 inch
2шт.
13
H424200
PLUG
- detent
1шт.
14
H141788
DISC
- detent
1шт.
15
H105049
SPRING
- detent
2шт.
16
H104992
PAWL
DETENT - spool
2шт.
17
H428292
SCREW,1/4" - 20 x 0.972"
BOLT - hex, special, angle spool
1шт.
18
H220517
SPRING
- spool
1шт.
19
H746164
WASHER
- special, 4 mm (5/32 inch) thick, angle spool
1шт.
20
H52902
CAP
RETAINER - spring, angle spool, upper
1шт.
21
H94219
PLUG
ASSEMBLY - hex, Includes: Ref. 22
1шт.
22
238-5116
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
1шт.
23
H47506
PLUG
ASSEMBLY - load check valve, Includes: Ref. 24
2шт.
24
238-7112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro
1шт.
25
FH730374
SPRING
- load check valve
2шт.
26
FH730366
PLUNGER
POPPET - load check valve
2шт.
F88054
VALVE
RELIEF VALVE - relief, 2000 psi, Includes: Ref. 27 - 30
1шт.
27
NSS
NOT SOLD SEPARAT
BODY - relief valve
1шт.
28
238-5116
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
Relief valve -116, 70 Duro, .737" ID x .103" Thk
1шт.
29
G32626
RING
- backup, small O-ring
1шт.
30
238-5114
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
Relief valve -114, 70 Duro, .612" ID x .103" Thk
1шт.
Выбрано товаров: 32
