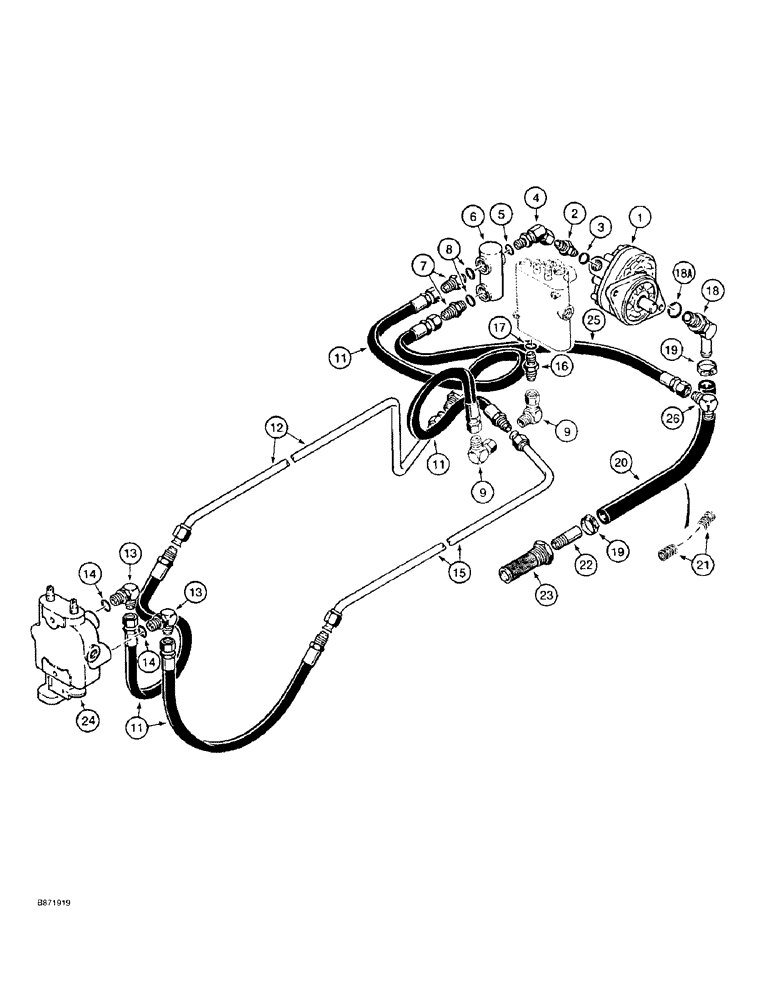

Запчасти Case TF300 (8-20) - BACKFILL BLADE HYDRAULIC CIRCUIT, CONTROL VALVE SUPPLY AND (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - ground drive, (See Figure 6-8), for mounting hardware see Figure 2-4

1шт.

2

218-5406

HYD CONNECTOR,7/8"-14 Male ORB x 1/2" NPSM

ADAPTER - straight, 7/8-14 O-ring x 1/2 inch PT, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

218-5327

ELBOW,45 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- 45 degree, 3/4-16 adj O-ring x 1/2 inch swivel str pipe, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

H542910

LOCK VALVE

VALVE ASSEMBLY - relief, hydraulic, (See Figure 8-26)

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

11

H234690

HYDRAULIC HOSE,12.70 mm ID x 457.20 mm, SAE 100R1

At Backfill Blade Control Valve and Relief Valve 12.70 mm ID x 457.20 mm, SAE 100R1

3шт.

12

H607267

TUBE,15.875 mm OD

- intermediate, from relief valve

1шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

H587998

TUBE,15.875 mm OD

- intermediate, from ground drive and boom control valve

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 45 degree, 1 stem end x 1-1/16-12 inch adj O-ring, Includes: Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

20

H169417

HOSE ASSY.

HOSE - 610 mm (24 inch) long, cut from H307926 bulk hose, ground drive pump to reservoir, see below

1шт.

21

H216994

VALVE SPRING

SPRING - suction hose

1шт.

22

H30650

NIPPLE, LUBE

NIPPLE - special, 1 inch PT

1шт.

23

H501478

STRAINER ASSY.

SCREEN - suction filter, reservoir

1шт.

24

H567487

VALVE

ASSEMBLY - control, backfill blade, (See Figure 8-24)

1шт.

25

H246298

HYDRAULIC HOSE,12.70 mm ID x 660.40 mm, SAE 100R1

Relief Valve to Tee 12.70 mm ID x 660.40 mm, SAE 100R1

1шт.

26

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

H307926

HOSE ASSY.

HOSE - bulk, 25 (1) ID x 1575 mm (62 inch) long

1шт.
