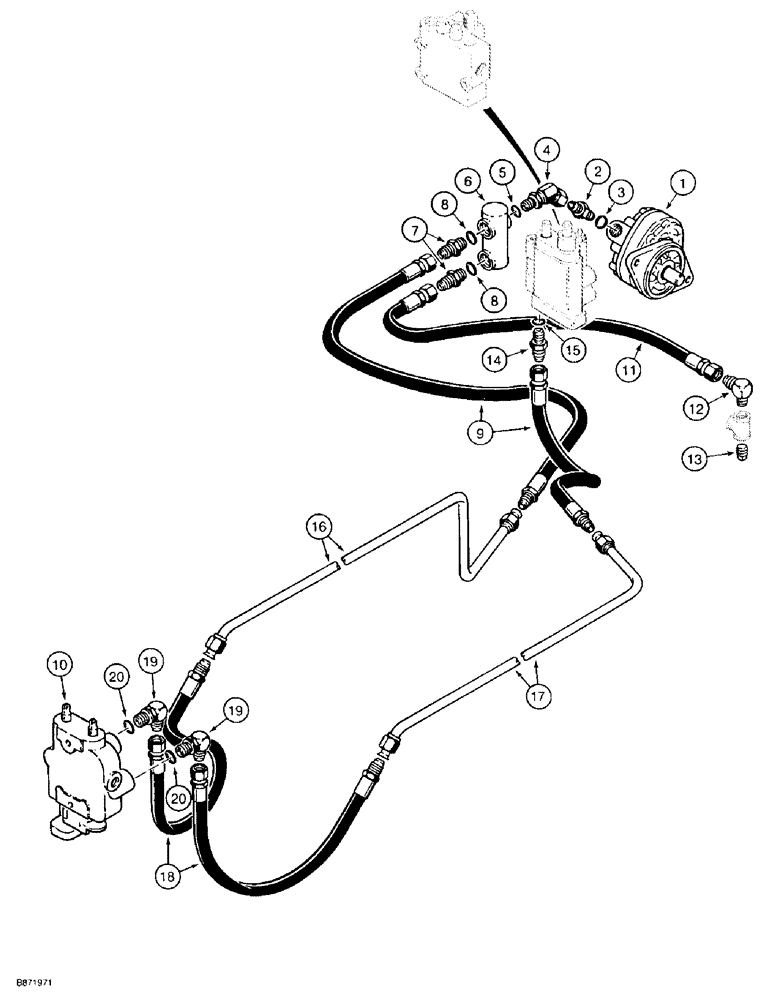

Запчасти Case TF300 (8-18) - BACKFILL BLADE HYDRAULIC CIRCUIT, CONTROL VALVE SUPPLY AND (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
H545921
LOCK VALVE
VALVE ASSEMBLY - control (See Figure 6-16)
1шт.
2
218-5406
HYD CONNECTOR,7/8"-14 Male ORB x 1/2" NPSM
ADAPTER - straight, 7/8-14 O-ring x 1/2 inch PT, Includes: Ref. 3
1шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
4
218-5327
ELBOW,45 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem
- 45 degree, 3/4-16 adj O-ring x 1/2 inch swivel str pipe, Includes: Ref. 5
1шт.
5
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
6
H542910
LOCK VALVE
VALVE ASSEMBLY - relief, hydraulic, (See Figure 8-26)
1шт.
7
218-5066
HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB
CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 8
2шт.
8
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
9
H234690
HYDRAULIC HOSE,12.70 mm ID x 457.20 mm, SAE 100R1
12.70 mm ID x 457.20 mm, SAE 100R1
2шт.
10
H567487
VALVE
ASSEMBLY - control, backfill blade, (See Figure 8-24)
1шт.
11
H246298
HYDRAULIC HOSE,12.70 mm ID x 660.40 mm, SAE 100R1
Relief Valve to Filter 12.70 mm ID x 660.40 mm, SAE 100R1
1шт.
12
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- 90 degree, 7/8-14 flare x 1/2 inch PT
1шт.
13
221-47
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - square, 1/2 inch PT, hollow core
1шт.
14
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 15
1шт.
15
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
16
H607267
TUBE,15.875 mm OD
- intermediate, from relief valve
1шт.
17
H587998
TUBE,15.875 mm OD
- intermediate, from ground drive and boom control valve
1шт.
18
H234690
HYDRAULIC HOSE,12.70 mm ID x 457.20 mm, SAE 100R1
At Backfill Blade Control Valve 12.70 mm ID x 457.20 mm, SAE 100R1
2шт.
19
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 20
2шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
Выбрано товаров: 20
