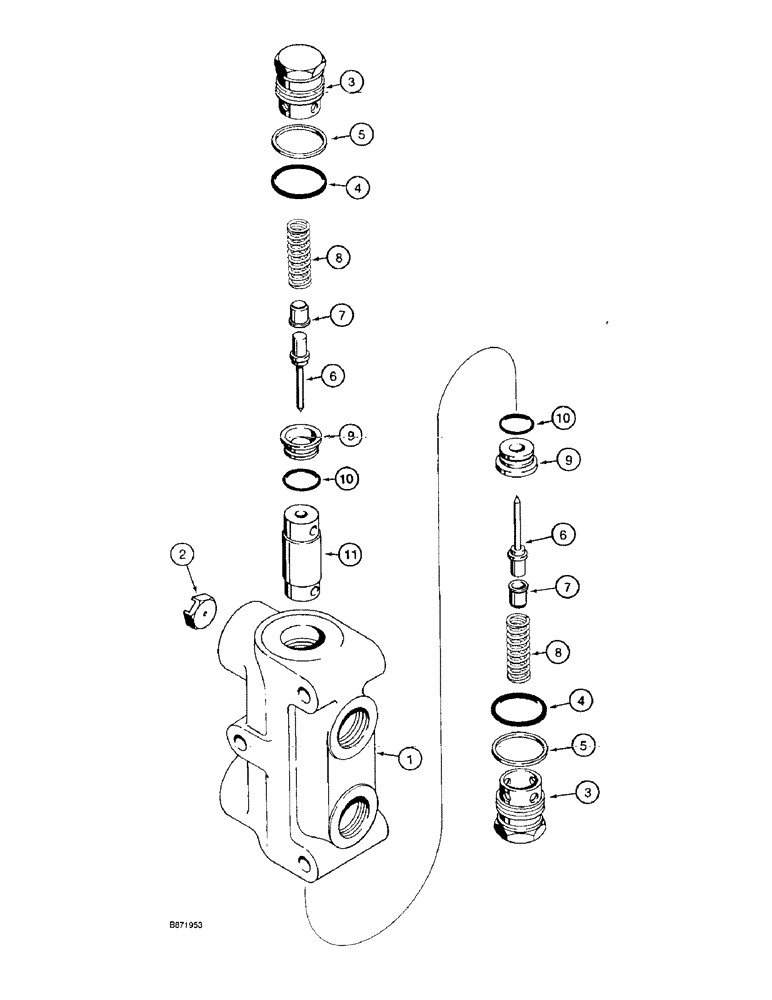

Запчасти Case TF300 (8-16) - TRENCHER LOCKOUT VALVE, P.I.N. 1184200 THROUGH P.I.N. (08) - HYDRAULICS

H591743

VALVE

ASSEMBLY - trencher lockout, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lockout valve

1шт.

2

H270603

ORIFICE

PLATE - orifice, 0.055 inch

1шт.

A43525

PLUG

ASSEMBLY - lockout valve, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG - lockout valve

1шт.

4

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

5

S302062

BACK-UP RING

RING - backup, plug O-ring

1шт.

6

H267930

PLUNGER

- lockout valve

2шт.

7

A43526

SPOOL

SEAT - spring

2шт.

8

A43528

VALVE SPRING

SPRING - plunger

2шт.

H593335

DRIVER SEAT

SEAT ASSEMBLY - plunger, Includes: Ref. 9 and 10

2шт.

9

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

10

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

11

N13489

PLUNGER

PISTON - lockout valve

1шт.
