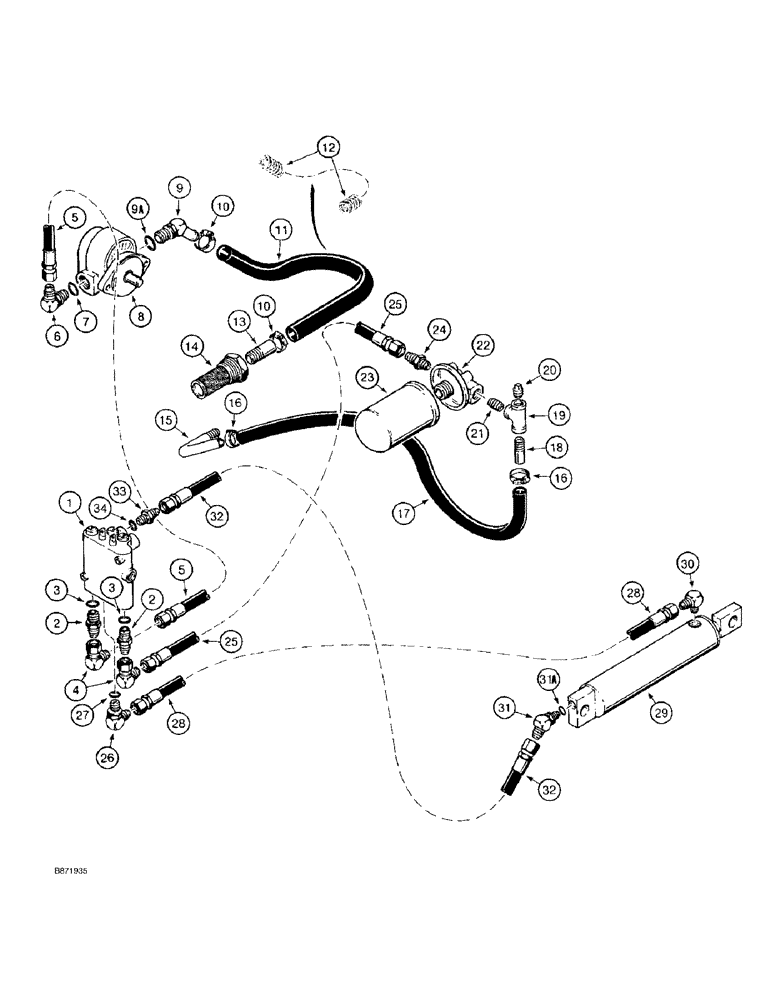

Запчасти Case TF300 (8-14) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT, P.I.N. 1213177 AND (08) - HYDRAULICS

1

H669796

VALVE

ASSEMBLY - control, ground drive and boom lift, (See Figure 6-26)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

5

H431023

HYDRAULIC HOSE,350.00 mm, SAE 100R1A

- Control valve to ground drive pump 350.00 mm, SAE 100R1A

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

REF

INSTRUCTION

PUMP ASSEMBLY - ground drive, (See Figure 6-8), for mounting hardware see Figure 2-4

1шт.

9

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 45 degree, 1 stem end x 1-1/16-12 inch adj O-ring, Includes: Ref. 9A

1шт.

9a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj., Ground drive pump to hydraulic reservoir hose #20, 0.81/1.75 Type F Worm

2шт.

11

H169417

HOSE ASSY.

HOSE - 610 mm (24 inch) long, cut from H307926 bulk hose, ground drive pump to hydraulic reservoir, see below

1шт.

12

H216994

VALVE SPRING

SPRING - suction hose

1шт.

13

H30650

NIPPLE, LUBE

NIPPLE - special, 1 inch PT

1шт.

14

H501478

STRAINER ASSY.

SCREEN - suction filter, hydraulic reservoir

1шт.

15

H92882

PIPE CLAMP

FITTING - pipe return, special

1шт.

16

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, , Hydraulic reservoir to filter hose #12, 0.69/1.25 Type F Worm

2шт.

17

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

- Cut from H379214 bulk hose, Pipe return fitting to tee, See below 0.75" ID x 27.00", SAE 30R2 Type 2

1шт.

18

H119487

NIPPLE, LUBE

NIPPLE - pipe, special

1шт.

19

221-424

TEE,1/2" NPT

- pipe, 1/2 inch

1шт.

20

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

21

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - straight, 1/2 PT x 1-1/8 inch

1шт.

22

F36110

CABLE PULLING GRIP

HEAD - filter

1шт.

23

H311654

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

1шт.

25

H175612

HYDRAULIC HOSE,12.70 mm ID x 609.60 mm, SAE 100R1

Filter to Control Valve 12.70 mm ID x 609.60 mm, SAE 100R1

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

D51686

HOSE

- 1372 mm (54 inch) long, rod end of trencher boom lift cylinder

1шт.

29

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke (See Figure 8-28), for mounting hardware see Figure 9-26

1шт.

30

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

31

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

- 45 degree, 3/4-16 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 31A

1шт.

32

H205955

HYDRAULIC HOSE,9.52 mm ID x 1193.80 mm, SAE 100R1

Closed End of Trencher Lift Cylinder to Control Valve 9.52 mm ID x 1193.80 mm, SAE 100R1

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, O-ring boss, Incl. Ref 34 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Used to mount control valve, Not shown Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

36

492-11038

LOCK WASHER,3/8"

used to mount control valve, not shown 3/8"

3шт.

37

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Used to mount control valve, Not shown

3шт.

H307926

HOSE ASSY.

HOSE - bulk, 25 (1) ID x 1575 mm (62 inch) long

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

19.00 mm ID x 5588.00 mm, SAE 30R2, Bulk

1шт.

31a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
