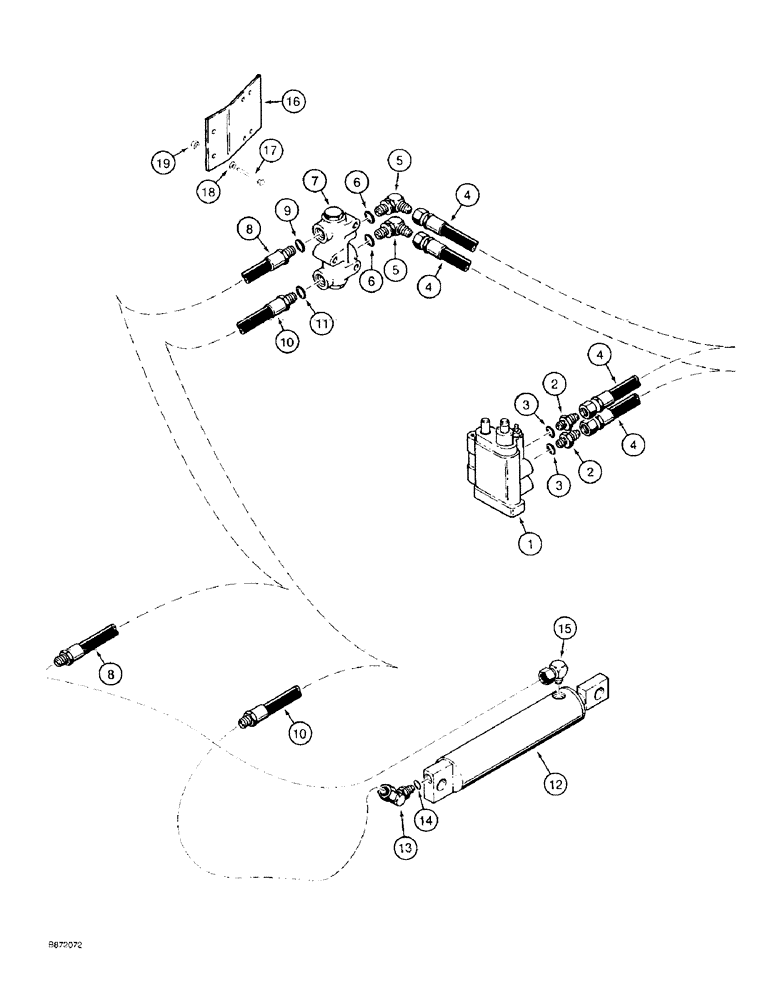

Запчасти Case TF300 (8-12) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT, CONTROL VALVE TO (08) - HYDRAULICS

1

H545921

LOCK VALVE

VALVE ASSEMBLY - control, ground drive and boom lift, (See Figure 6-16)

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 3

2шт.

4

H195750

HYDRAULIC HOSE,9.52 mm ID x 355.60 mm, SAE 100R1

9.52 mm ID x 355.60 mm, Control Valve to Lockout Valve

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

H591743

VALVE

ASSEMBLY - trencher lockout, (See Figure 8-16)

1шт.

8

H69708

HOSE

- 1245 mm (49 inch) long, lockout valve to rod end of boom lift cylinder, Includes: Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

H51458

HOSE

- 889 mm (35 inch) long, lockout valve to closed end of boom lift cylinder, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke (See Figure 8-28), for mounting hardware see Figure 9-26

1шт.

13

218-5325

ELBOW,45 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem

- 45 degree, 9/16-18 adj O-ring x 3/8 inch swiv str pipe, Includes: Ref. 14

1шт.

15

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- 90 degree, 3/8 inch PT x swivel str pipe

1шт.

16

H397554

SUPPORT

BRACKET - lockout valve mounting

1шт.

17

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

3шт.

18

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

3шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
