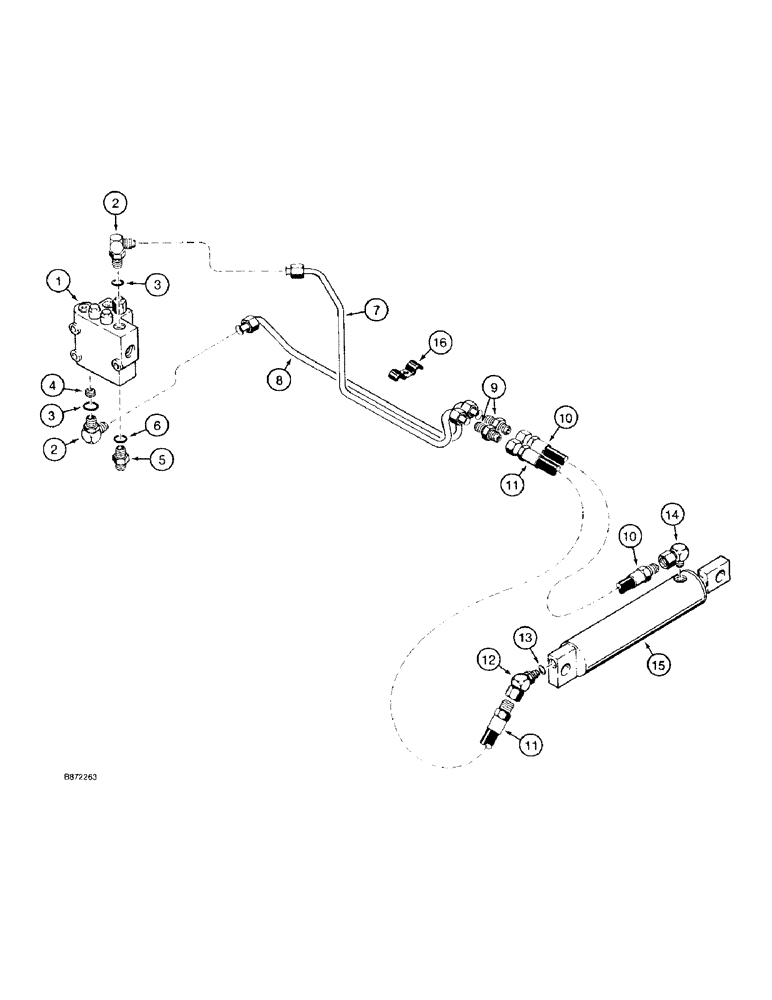

Запчасти Case TF300 (8-08) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT, CONTROL VALVE TO (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, ground drive and boom lift, (See Figures 6-18 - 6-24)

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H265652

SCREW

ORIFICE - control valve

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

H591834

TUBE,0.5" OD

- control valve to closed end of trencher boom lift cylinder

1шт.

8

H591859

TUBE,0.5" OD

- control valve to rod end of trencher boom lift cylinder, For models with backfill blade see Figure 6-40 for controls and linkage.

1шт.

9

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, large hex, 3/4-16 flare x 9/16-18 inch flare

2шт.

10

H224451

HOSE ASSY.

HOSE - 1448 mm (57 inch) long, rod end of trencher boom lift cylinder

1шт.

11

H317529

HOSE

- 1346 mm (53 inch) long, closed end of trencher boom lift cylinder

1шт.

12

218-5325

ELBOW,45 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem

- 45 degree, 9/16-18 adj O-ring x 3/8 inch swiv str pipe, Includes: Ref. 13

1шт.

14

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- 90 degree, 3/8 inch PT x swivel str pipe

1шт.

15

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke (See Figure 8-28), for mounting hardware see Figure 9-26

1шт.

16

H97816

CLAMP

- tube

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
