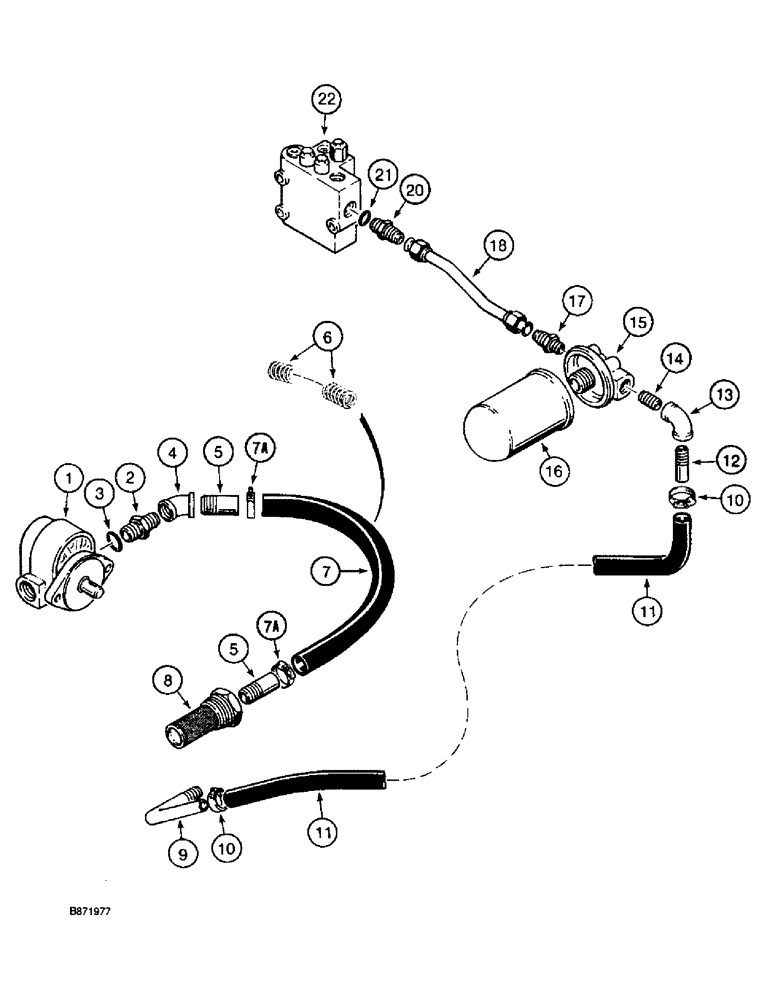

Запчасти Case TF300 (8-06) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT, CONTROL VALVE TO (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - ground drive, (See Figure 6-8), for mounting hardware see Figure 2-4

1шт.

2

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

ADAPTER - straight, 1-1/16-12 O-ring boss x 3/4 inch PT, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

221-369

ELBOW UNION,45 Degree, 3/4" NPT

ELBOW - pipe, 45 degree, 3/4 inch

1шт.

5

H30650

NIPPLE, LUBE

NIPPLE - special, 1 inch PT

2шт.

6

H216994

VALVE SPRING

SPRING - suction hose

1шт.

7

H169417

HOSE ASSY.

HOSE - 610 mm (24 inch) long, cut from H307926 bulk hose, ground drive pump to hydraulic reservoir, see below

1шт.

7

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

2шт.

8

H501478

STRAINER ASSY.

SCREEN - suction filter, hydraulic reservoir

1шт.

9

H92882

PIPE CLAMP

FITTING - pipe return, special

1шт.

10

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, , Hydraulic reservoir to filter hose #12, 0.69/1.25 Type F Worm

2шт.

11

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

- Cut from H379214 bulk hose, Hydraulic reservoir to filter, See below 0.75" ID x 27.00", SAE 30R2 Type 2

1шт.

12

H119487

NIPPLE, LUBE

NIPPLE - pipe, special

1шт.

13

221-377

ELBOW,90 Degree, 1/2" NPT

- pipe, 90 degree, 1/2 inch

1шт.

14

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - straight, 1/2 PT x 1-1/8 inch

1шт.

15

F36110

CABLE PULLING GRIP

HEAD - filter

1шт.

16

H311654

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

17

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

1шт.

18

H591792

TUBE,0.625" OD x 5.594, 1.812" L

- filter to control valve

1шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - control, ground drive and boom lift, (See Figures 6-18 - 6-24)

1шт.

H307926

HOSE ASSY.

HOSE - bulk, 25 (1) ID x 1575 mm (62 inch) long

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

19.00 mm ID x 5588.00 mm, SAE 30R2, Bulk

1шт.
