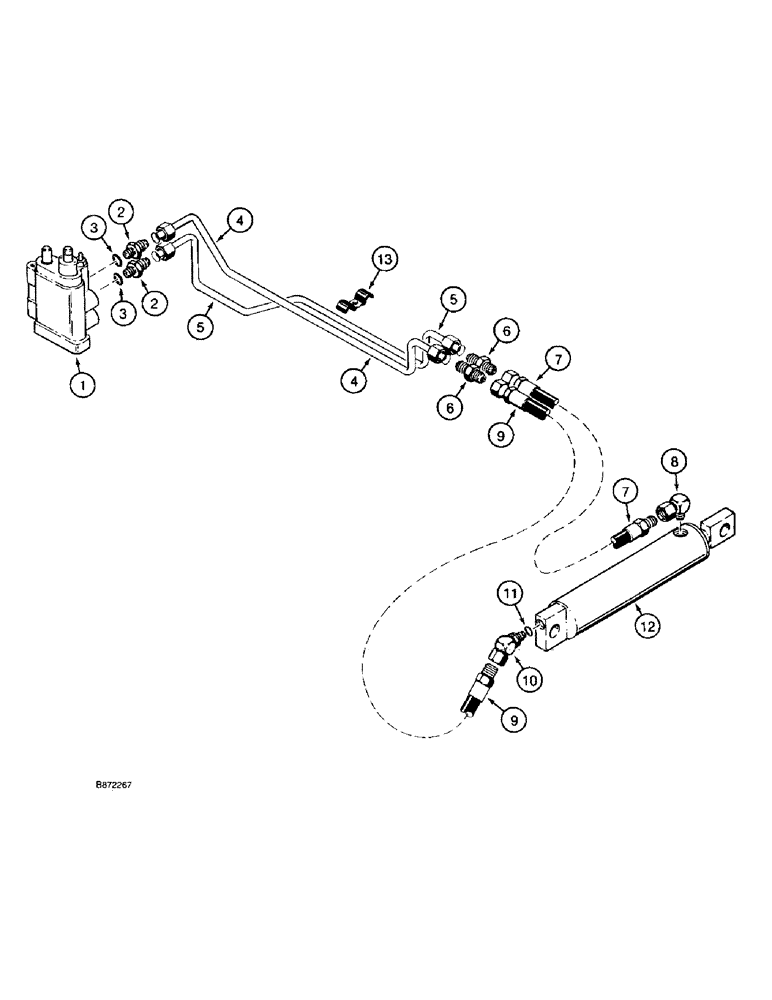

Запчасти Case TF300 (8-04) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT, CONTROL VALVE TO (08) - HYDRAULICS

1

H545921

LOCK VALVE

VALVE ASSEMBLY - control, ground drive and boom lift, (See Figure 6-16)

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 3

2шт.

4

H529321

TUBE,0.5" OD x 21.75, 5.437" L

- control valve to closed end of trencher boom lift cylinder

1шт.

5

H529339

TUBE,0.5" OD x 21.75, 4.062" L

- control valve to rod end of trencher boom lift cylinder

1шт.

6

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, large hex, 3/4-16 flare x 9/16-18 inch flare

2шт.

7

H224451

HOSE ASSY.

HOSE - 1448 mm (57 inch) long, rod end of trencher boom lift cylinder

1шт.

8

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- 90 degree, 3/8 inch PT x swivel str pipe

1шт.

9

H317529

HOSE

- 1346 mm (53 inch) long, closed end of trencher boom lift cylinder

1шт.

10

218-5325

ELBOW,45 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem

- 45 degree, 9/16-18 adj O-ring x 3/8 inch swiv str pipe, Includes: Ref. 11

1шт.

12

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke (See Figure 8-28), for mounting hardware see Figure 9-26

1шт.

13

H97816

CLAMP

- tube

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
