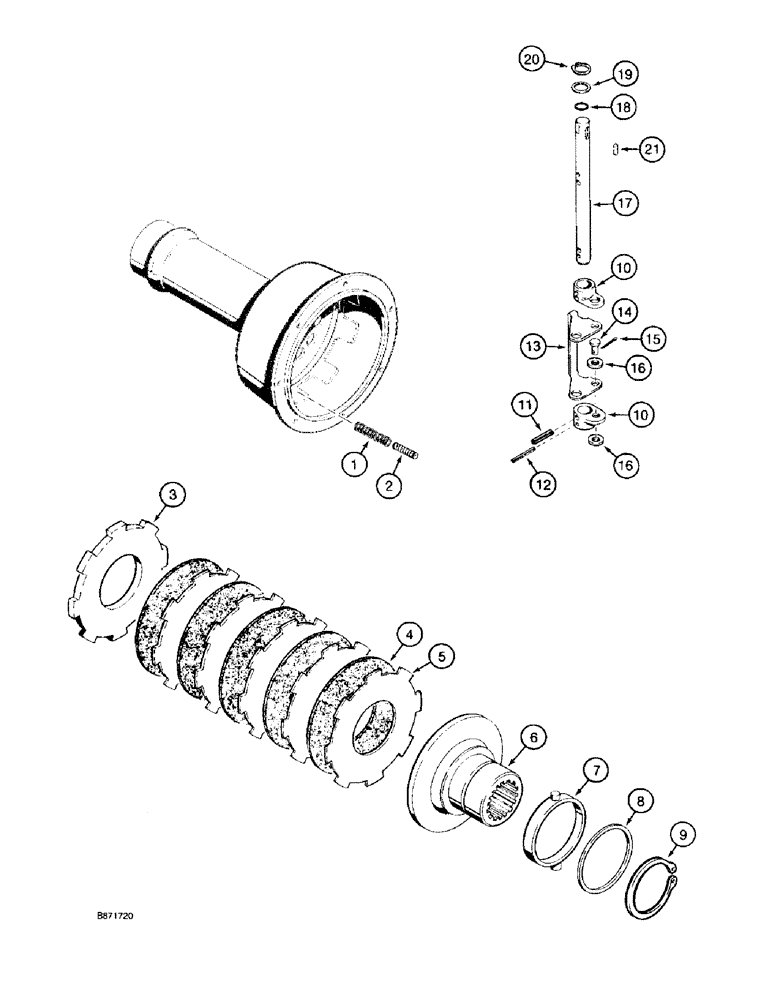

Запчасти Case TF300 (7-02) - TRANSMISSION ASSEMBLY, BRAKE ASSEMBLIES AND LINKAGE (07) - BRAKES

H547281

TRANSMISSION

ASSEMBLY - ground drive, continued, includes parts on Figure 6-44, Includes: Ref. 1 - 21

1шт.

1

N14636

SPRING

- brake adjuster, outer

12шт.

2

H123612

VALVE SPRING

SPRING - brake adjuster, inner

12шт.

3

H176982

PLATE ASSY.

PLATE - backup, brake clutch

2шт.

4

H176990

DISC

- friction, brake clutch, rotating

10шт.

5

H177006

DISC

- stationary, brake clutch, external teeth

10шт.

6

H177147

CLUTCH ASSEMBLY

PISTON - brake

2шт.

7

H100131

RING, SNAP

COLLAR - brake actuating

2шт.

8

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

- thrust, bearing, 3.2 mm, brake actuating collar

2шт.

9

100-11250

SNAP RING,#250, Ext

Ring, Snap, , piston #250, Ext

2шт.

10

H100065

KEY

COLLAR - retaining, brake actuating shaft

4шт.

11

38-11618

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

4шт.

12

38-11218

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

4шт.

13

H100073

KEY

LEVER - brake actuating

2шт.

14

H100354

CLEVIS COUPLING

PIN - clevis, shaft, Serial Range: collar-lever

4шт.

15

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

16

H100222

WASHER

- flat

8шт.

17

H100289

KEY

SHAFT - brake actuating

2шт.

18

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

Part of transmission seal kit P/N H177154

1шт.

19

H100214

WASHER

- flat, shaft

2шт.

20

F42092

RING, SNAP

RING - retaining, shaft

2шт.

21

H58016

KEY

- shaft

2шт.

H177154

GASKET KIT

KIT - transmission seal, Includes: Ref. 18 in this Figure, also see Figures 6-42 and 6-44

1шт.
