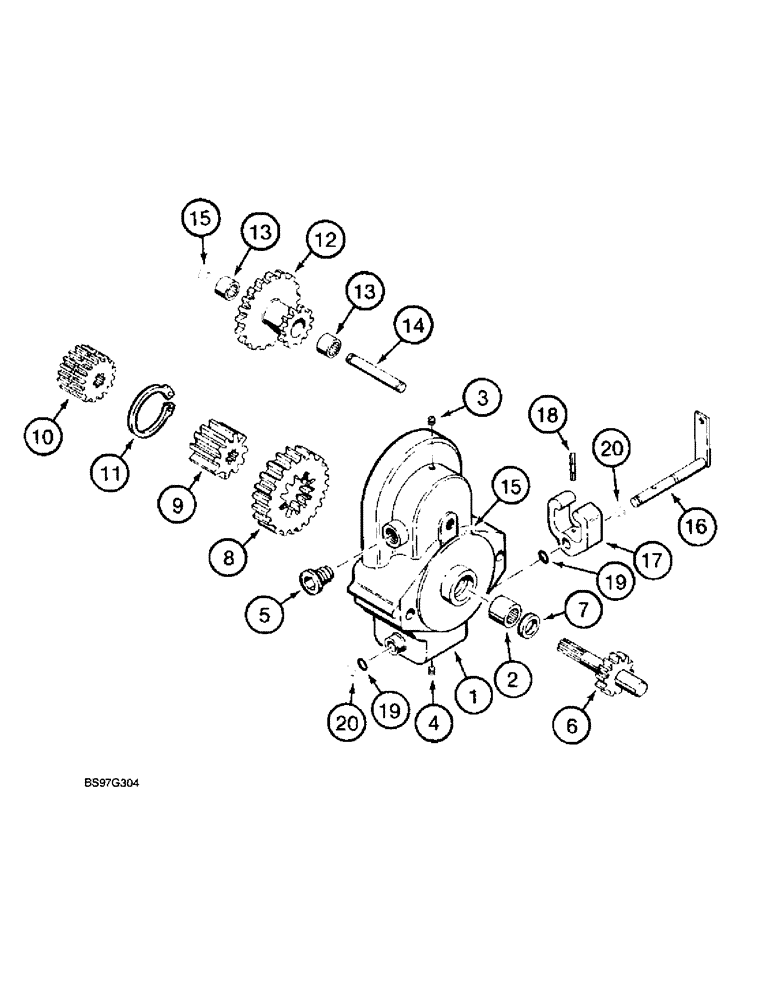

Запчасти Case TF300 (6-46) - REDUCTION ASSEMBLY - GEAR (06) - POWER TRAIN

H581017

GEAR

REDUCTION ASSEMBLY - gear, drive motor to transmission, Includes: Ref. 1 - 20

1шт.

1

H135293

HOUSING

- reduction gears, Includes: Ref. 2

1шт.

2

H747949

NEEDLE BEARING

BEARING - needle

1шт.

3

H226639

PLUG

- air vent

1шт.

4

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

1шт.

5

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

6

H176941

GEAR WHEEL

GEAR - drive, axle reduction gear

1шт.

7

H746313

SEAL ASSY.

SEAL - drive gear

1шт.

8

H244756

GEAR WHEEL

GEAR - shifting

1шт.

9

H244749

GEAR WHEEL

GEAR - drive gear shaft, output

1шт.

10

H351809

GEAR WHEEL

GEAR - motor

1шт.

11

101-11168

SNAP RING,#168, 1.581", Ext

RING - external retaining, No. 168, motor gear

1шт.

12

H97915

REDUCER

GEAR - reduction, Includes: Ref. 13

1шт.

13

H754721

BEARING

- needle

2шт.

14

H97931

SHAFT

- reduction gear

1шт.

15

L31750

CIRCLIP,0.562", Int, #56

Ring, Snap, , reduction gear shaft 0.562", Int, #56

2шт.

16

H97956

LEVER

SHAFT - with lever, shifting

1шт.

17

H244764

FORK

- shifter

1шт.

18

435-1514

GROOVED PIN,5/32" x 7/8", Type A

PIN - clevis, 5/32 x 7/8 inch

1шт.

19

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Lever

2шт.

20

100-1143

SNAP RING,#43, Ext

Ring, Snap, , lever #43, Ext

2шт.
