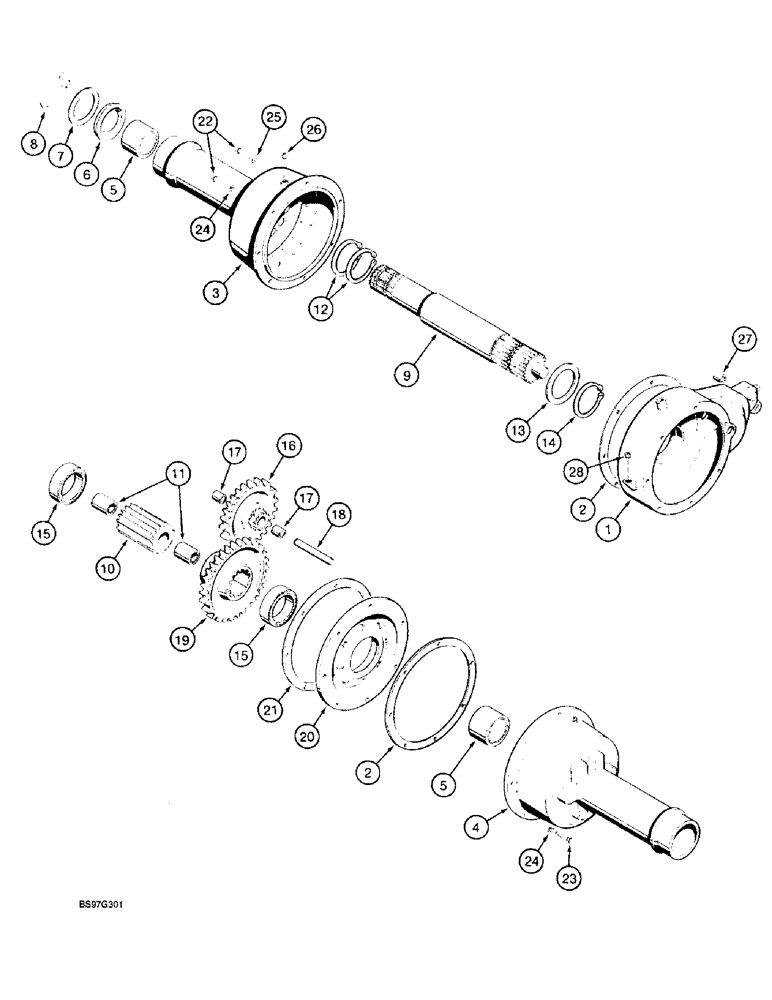

Запчасти Case TF300 (6-44) - TRANSMISSION ASSEMBLY (06) - POWER TRAIN

H547281

TRANSMISSION

ASSEMBLY - ground drive, Includes: Ref. 1 - 28

1шт.

1

H100115

HOUSING

- gear

1шт.

2

H100255

GASKET

- sealing

2шт.

Part of transmission seal kit P/N H177154

1шт.

3

H123588

CENTER AXLE

HOUSING - axle and brake, left-hand, with air vent

1шт.

4

H123596

CENTER AXLE

HOUSING - axle and brake, right-hand

1шт.

5

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

BEARING - needle, one per each axle housing

2шт.

6

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

- axle shaft

2шт.

Part of transmission seal kit P/N H177154

1шт.

7

H100362

WASHER

- seal support

2шт.

8

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

9

H100230

SHAFT

- axle

2шт.

10

H100180

SHAFT

- drive, axles

2шт.

11

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

2шт.

12

100-11156

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

4шт.

13

H100271

WASHER

- backup

2шт.

14

103-11200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

15

S89657

BEARING

- ball, axle drive shaft

2шт.

16

H176974

REDUCER

GEAR - reduction

1шт.

17

H747964

NEEDLE BEARING,Needle, 20.64mm ID x 26.99mm OD x 22.23mm W

BEARING - needle

2шт.

18

H100263

REDUCER

SHAFT - axle reduction gear

1шт.

19

H126797

GEAR WHEEL

GEAR - drive, axles

1шт.

20

H100057

PLATE ASSY.

PLATE - ball bearing

1шт.

21

H100248

GASKET

- gear housing

1шт.

Part of transmission seal kit P/N H177154

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, left-hand housing

7шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, RH housing

7шт.

24

492-11038

LOCK WASHER,3/8"

9шт.

25

H100339

WASHER

- copper

5шт.

Part of transmission seal kit P/N H177154

1шт.

26

H746230

PLUG

- air vent

1шт.

27

H747949

NEEDLE BEARING

BEARING - needle, gear housing

1шт.

28

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

H177154

GASKET KIT

KIT - transmission seal, includes: Refs. 2, 6, 21 and 25 in this Figure, also see Figures 6-42 and 7-2

1шт.
