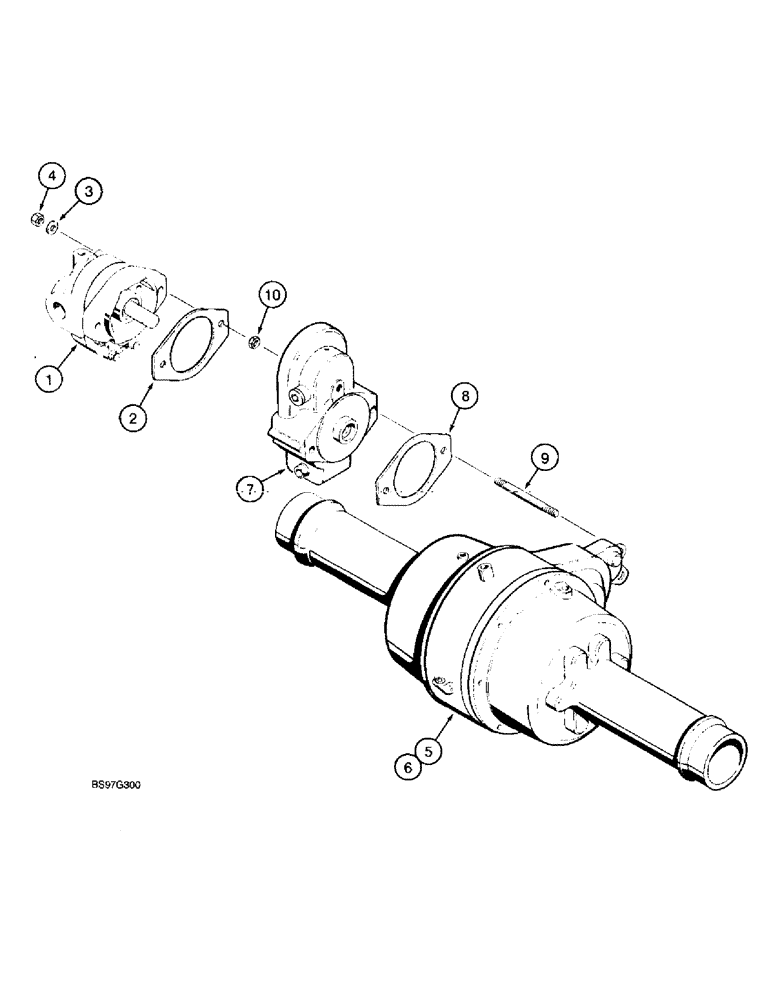

Запчасти Case TF300 (6-42) - TRANSMISSION ASSEMBLY, MODELS WITH STEEL TRACKS (06) - POWER TRAIN

114813A1

TRANSMISSION

ASSEMBLY - used with steel track (Replaces part H581009), Includes: Ref. 1 - 10

1шт.

1

H656629

GEAR WHEEL

MOTOR ASSEMBLY - ground drive (See Figure 6-12)

1шт.

2

1342757C1

GASKET

- motor assembly to gear box

1шт.

Part of transmission seal kit P/N H177154

1шт.

3

H57943

SEALING WASHER

WASHER - copper

2шт.

4

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

2шт.

5

231913A1

TRANSMISSION

ASSEMBLY - ground drive, Includes: Ref. 6 - 10

1шт.

6

H547281

TRANSMISSION

ASSEMBLY - ground drive (See Figure 6-44)

1шт.

7

H581017

GEAR

REDUCTION ASSEMBLY - gear (See Figure 6-46)

1шт.

8

1342757C1

GASKET

- motor mounting

1шт.

Part of transmission seal kit P/N H177154

1шт.

9

H125047

STUD

- ground drive motor and gear reduction assembly to gear housing

2шт.

10

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

226300A1

TRANSMISSION

ASSEMBLY - used with rubber tracks, Includes: Ref. 1 - 10

1шт.

1

199030A1

MOTOR

ASSEMBLY - ground drive (See Figure 6-14)

1шт.

2

1342757C1

GASKET

- motor assembly to gear box

1шт.

Part of transmission seal kit P/N H177154

1шт.

3

H57943

SEALING WASHER

WASHER - copper

2шт.

4

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

2шт.

5

231913A1

TRANSMISSION

ASSEMBLY - ground drive, Includes: Ref. 6 - 10

1шт.

6

H547281

TRANSMISSION

ASSEMBLY - ground drive (See Figure 6-44)

1шт.

7

H581017

GEAR

REDUCTION ASSEMBLY - gear (See Figure 6-46)

1шт.

8

1342757C1

GASKET

- motor mounting

1шт.

Part of transmission seal kit P/N H177154

1шт.

9

H125047

STUD

- ground drive motor and gear reduction assembly to gear housing

2шт.

10

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

H177154

GASKET KIT

KIT - transmission seal, Includes: Refs. 2 and 8 for both steel tracks and rubber tracks in this Figure, also see Figures 6-44 and 7-2.

1шт.
