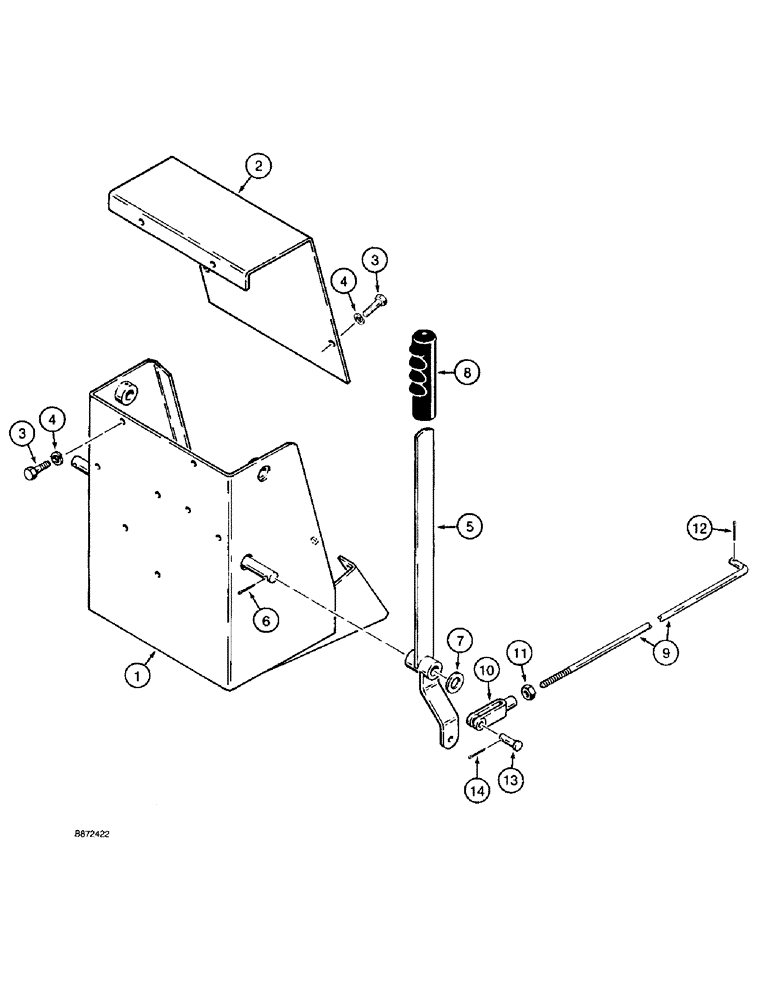

Запчасти Case TF300 (6-40) - CONSOLE, CONTROLS, AND LINKAGE, USED ON MODELS WITH BACKFILL (06) - POWER TRAIN

1

H608018

MOUNTING PARTS

CONSOLE - controls

1шт.

2

H557066

COVER

- control console

1шт.

3

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

192-404

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

4шт.

5

H587626

LEVER

- propulsion

1шт.

6

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

7

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

8

H31773

HANDLE

GRIP - lever

1шт.

9

H255471

STEM

ROD - control, propulsion

1шт.

10

213-116

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS - adjustable, 3/8 inch NF

1шт.

11

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF, if used

1шт.

12

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

13

H25957

CLEVIS COUPLING

PIN - clevis, 3/8 x 1-3/32 inch, 3/8 x 1-3/32 inch

1шт.

14

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.
