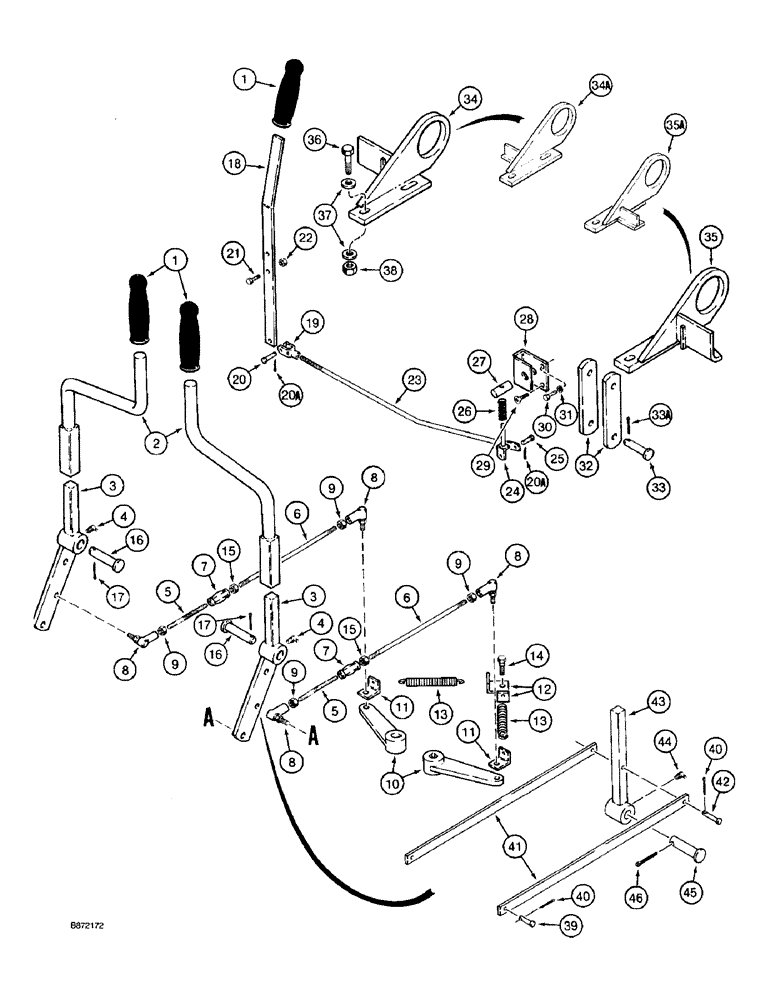

Запчасти Case TF300 (6-36) - TRANSMISSION MOUNTING, CONTROLS, AND LINKAGE (06) - POWER TRAIN

1

H31773

HANDLE

GRIP - lever

3шт.

2

H588921

HANDLE

LEVER - steering control

2шт.

3

H528224

LEVER

BELLCRANK - steering control lever

2шт.

4

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch

2шт.

5

H109348

ROD

- steering, at bellcrank

2шт.

6

H109355

ROD

- steering, at transmission lever

2шт.

7

H96743

TURNBUCKLE

- rod

2шт.

8

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, 3/8 inch NF

4шт.

9

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8 inch NF

4шт.

10

H93351

LEVER

- transmission

2шт.

11

H96347

CLIP

ANGLE - at transmission lever

2шт.

12

H96354

CLIP

ANGLE - at transmission bracket

2шт.

13

H93377

VALVE SPRING

SPRING - transmission, Serial Range: lever-bracket

2шт.

14

H756098

SCREW

BOLT - shoulder

1шт.

15

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

16

H114843

AXLE PIN

PIN - clevis, 3/4 x 2-7/8 inch long, at bellcrank

2шт.

17

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

18

H210302

HANDLE

LEVER - speed

1шт.

19

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

1шт.

20

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - clevis, 5/16 x 1 inch

1шт.

20a

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

21

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

22

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

1шт.

23

H614552

ROD

- shift

1шт.

24

H531178

AXLE PIN

PIVOT - shift rod

1шт.

25

D23693

AXLE PIN

PIN - clevis, 1/4 x 1 inch long

1шт.

26

H115501

VALVE SPRING

SPRING - shift rod

1шт.

27

H115527

AXLE PIN

PIN - shift bracket

1шт.

Ref. 27 pin goes through Ref. 28 bracket. There is a washer/shim used that goes inside the short leg of the bracket. The pin then goes through one side of the bracket, then the washer, then the other side of the bracket. Part # for the washer is H426809

1шт.

28

H567040

BRACKET

- shift

1шт.

29

164-206

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

BOLT - hex socket, 5/16 NC x 3/4 inch

1шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

H433047

LINK

- torque

2шт.

33

H262113

PIN

- clevis, 3/4 x 2 inch

1шт.

33

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

34

H564716

MOUNTING PARTS

BRACKET - transmission mounting, left-hand, used on models with steel tracks

1шт.

34a

H673895

SUPPORT

BRACKET - transmission mounting, left-hand, used on models with rubber tracks

1шт.

35

H564708

MOUNTING PARTS

BRACKET - transmission mounting, right-hand, used on models with steel tracks

1шт.

35a

H673896

SUPPORT

BRACKET - transmission mounting, right-hand, used on models with rubber tracks

1шт.

36

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

37

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

38

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.

39

H44289

CLEVIS COUPLING

PIN - clevis, 5/16 x 1-1/8 inch, 5/16 x 1-1/8 inch long

2шт.

40

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

41

H112144

BAR

LINK - bellcrank to control lever

4шт.

42

H42887

CLEVIS PIN

PIN - clevis, 5/16 x 1-1/2 inch

2шт.

43

H529743

LEVER

- steering control, backfill blade

2шт.

44

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch

2шт.

45

H114843

AXLE PIN

PIN - clevis, 3/4 x 2-7/8 inch long

2шт.

46

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

2шт.

Ref. 27 pin goes through Ref. 28 bracket. There is a washer/shim used that goes inside the short leg of the bracket. The pin then goes through one side of the bracket, then the washer, then the other side of the bracket. Part # for the washer is H426809

1шт.
