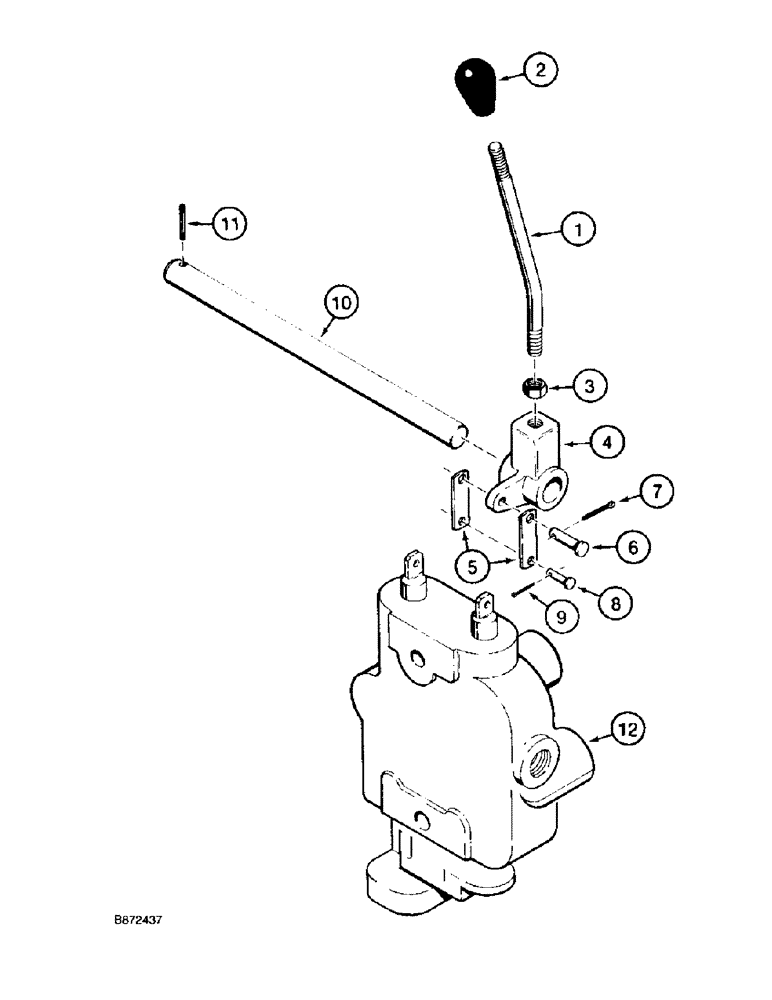

Запчасти Case TF300 (6-34) - BACKFILL BLADE CONTROLS AND LINKAGE (06) - POWER TRAIN

1

H182063

HANDLE

- lever, backfill control

2шт.

2

A14051

GRIP

KNOB - lever

2шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

4

H275255

CRANK LEVER

BELLCRANK - control lever pivot

2шт.

5

H185066

DRAG LINK

LINK - spool to backfill control valve

4шт.

6

D23693

AXLE PIN

PIN - clevis, 1/4 x 1 inch long

2шт.

7

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

8

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16 x 57/64 inch

2шт.

9

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

10

H185116

SHAFT

- control levers

1шт.

11

38-11218

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

1шт.

12

H567487

VALVE

ASSEMBLY - control, backfill blade, (See Figure 8-24)

1шт.
