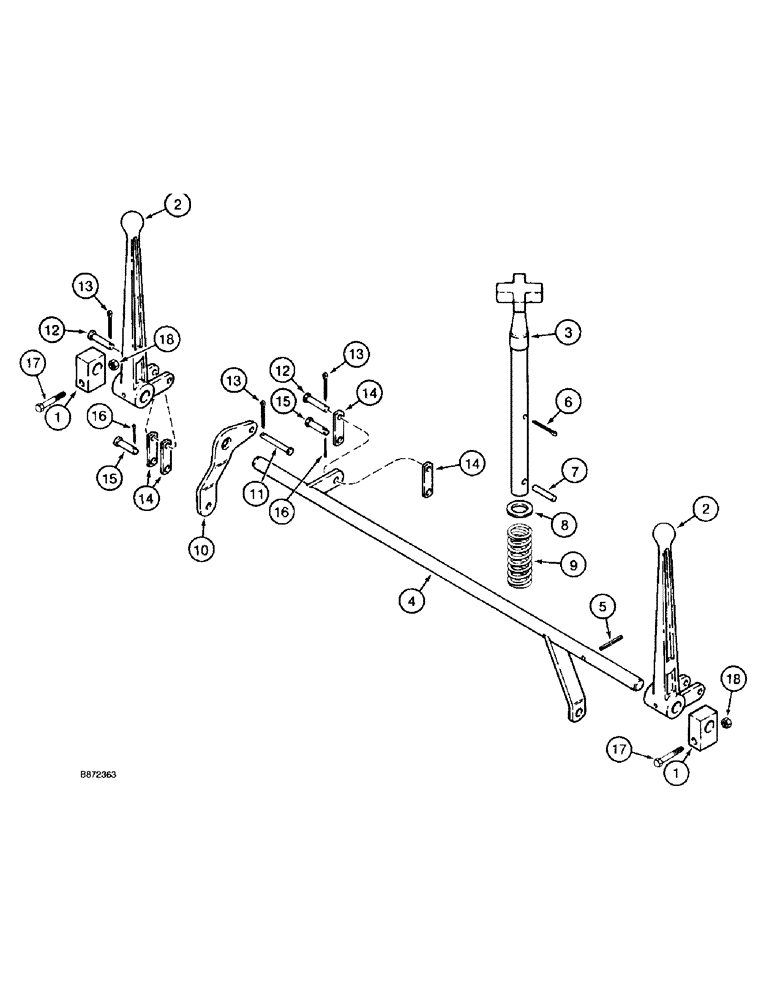

Запчасти Case TF300 (6-32) - GROUND DRIVE, BOOM, AND SPEED CONTROLS, USED ON MODELS WITH (06) - POWER TRAIN

1

H48843

BLOCK

- control levers

2шт.

2

H68940

LEVER

- control, boom and ground drive control, left-hand

1шт.

3

H431148

LEVER

- control, boom and ground drive control, right-hand

1шт.

4

H430967

HANDLE

KNOB - contol lever

1шт.

5

H670737

SHAFT

- control levers

1шт.

REF. H670737 SHAFT SUBS TO 242096A1 WHICH HAS 2 HOLES INSTEAD OF ONE ON ONE OF THE OUT CROPS.

1шт.

6

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

7

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

8

135-919

GROOVED PIN,1/8" x 7/8", Type G

PIN, GROOVED, , half length parallel groove with angular groove for spring retention 1/8" x 7/8", Type G

1шт.

9

495-11081

WASHER,3/4", SAE

1шт.

10

H41699

VALVE SPRING

SPRING - speed control lever

1шт.

11

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16 x 57/64 inch

2шт.

12

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

2шт.

13

H185066

DRAG LINK

LINK - control valve lever

4шт.

14

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis, special

2шт.

15

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

16

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

17

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

All Ref. are off by 1 starting with Ref. 3

1шт.

Ref.15 - 16-----switch, Refs. -----Ref. 15 is pin,---Ref. 16 is bolt.

1шт.
