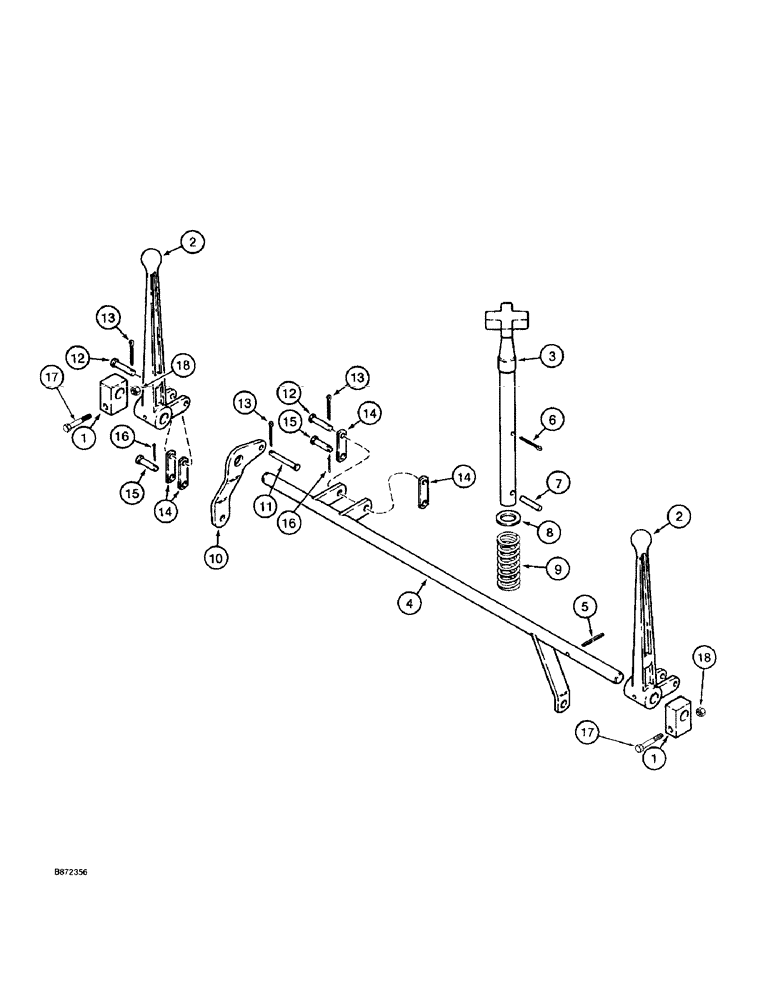

Запчасти Case TF300 (6-28) - GROUND DRIVE, BOOM, AND SPEED CONTROLS, FIRST PRODUCTION (06) - POWER TRAIN

1

H48843

BLOCK

- control levers

2шт.

2

H68940

LEVER

- control, boom and ground drive control

2шт.

3

H35212

HANDLE

KNOB - lever

1шт.

4

H528307

SHAFT

- control levers

1шт.

5

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

6

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

7

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16 x 57/64 inch

1шт.

8

495-11081

WASHER,3/4", SAE

1шт.

9

H41699

VALVE SPRING

SPRING - speed control lever

1шт.

10

H529750

DIPPER

BELLCRANK - shaft

1шт.

11

H54890

CLEVIS PIN,4.76mm OD x 46.04mm L

PIN - clevis, 3/16 x 1-9/16 inch

1шт.

12

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

PIN - clevis, special

2шт.

13

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

3шт.

14

H73379

DRAG LINK

LINK - control valve lever

4шт.

15

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - clevis, 5/16 x 1 inch

2шт.

16

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

17

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

18

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.
