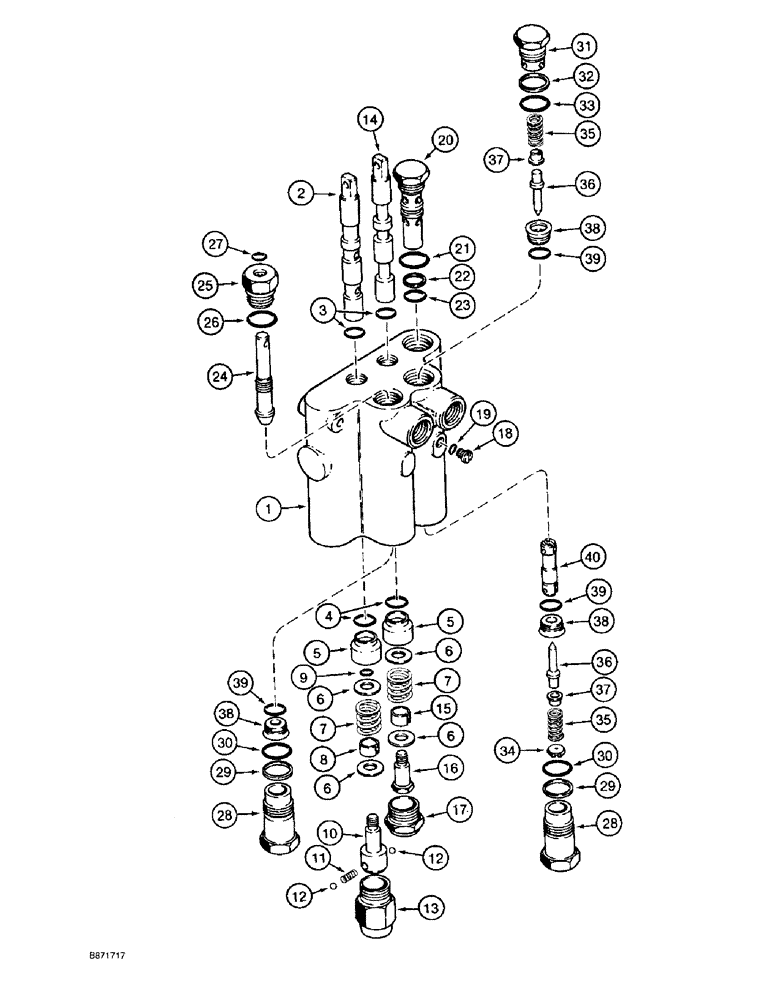

Запчасти Case TF300 (6-26) - CESSNA CONTROL VALVE - GROUND DRIVE AND BOOM LIFT, P.I.N. (06) - POWER TRAIN

294275A1

VALVE

ASSEMBLY - control (replaces H669796), Includes: Ref. 1 - 40

1шт.

H669796 is replaced by 294275A1. New plug assembly is 369309A1, which is counterpart to H93849 in H669796 old valve assembly.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - ground drive

1шт.

3

F37887

O-RING

- eye end

2шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Detent end -114, 70 Duro, .612" ID x .103" Thk

2шт.

5

T39069

BUSHING

- spool, detent

2шт.

6

F8235

WASHER

- flat, special, spring seat

4шт.

7

F14091

VALVE SPRING

SPRING - centering

2шт.

8

N8436

WASHER

SPACER - split, 11 mm (7/16 inch) long

1шт.

9

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

10

N8438

SCREW,3/8" - 24 x 1 13/32"

- adjusting, ground drive spool

1шт.

11

H105122

VALVE SPRING

SPRING - detent, ground drive spool

1шт.

12

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Gr 24

2шт.

13

N8437

CAP

- detent, ground drive spool

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - boom lift

1шт.

15

F37885

SPACER

- 10 mm (13/32 inch) long

1шт.

16

F37886

SCREW

- adjusting, boom lift spool

1шт.

17

F35196

CAP

- spool end, boom lift spool

1шт.

18

825226C91

PLUG

ASSEMBLY - port, Includes: Ref. 19

1шт.

19

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.

N8813

LOCK VALVE

VALVE ASSEMBLY - relief, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

VALVE - relief valve assembly

1шт.

21

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Large -116, 70 Duro, .737" ID x .103" Thk

1шт.

22

G32626

RING

- backup, inner O-ring

1шт.

23

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Small -114, 70 Duro, .612" ID x .103" Thk

1шт.

24

N14114

SCREW

STEM - needle valve

1шт.

H93849

PLUG

ASSEMBLY - needle valve, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG - needle valve

1шт.

26

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Plug to control valve body -116, 70 Duro, .737" ID x .103" Thk

1шт.

27

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

Needle valve stem -111, 90 Duro, .424" ID x .103" Thk

1шт.

A44497

ADAPTER

ASSEMBLY - port, Includes: Ref. 28 - 30

2шт.

28

NSS

NOT SOLD SEPARAT

ADAPTER - port

1шт.

29

S302062

BACK-UP RING

RING - backup, adpater O-ring

1шт.

30

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

F35197

PLUG

ASSEMBLY - load check valve, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

32

S302062

BACK-UP RING

RING - backup, load check valve

1шт.

33

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

34

N8439

PLATE

- orifice

1шт.

35

F35198

VALVE SPRING

SPRING -

2шт.

36

F88777

PLUNGER

POPPET -

2шт.

37

H266684

AXLE PIN

GUIDE - poppet

2шт.

38

F37884

SEAT

ASSEMBLY - poppet, also used as a spacer, Includes: Ref. 39

3шт.

39

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

40

N8434

PLUNGER

- load check

1шт.

N8440

SEAL KIT

- seal, control valve, includes Ref. 3, 4, 9, 19, 21 - 23, 26, 27, 29, 30, 32, 33, 36 and 39

1шт.
