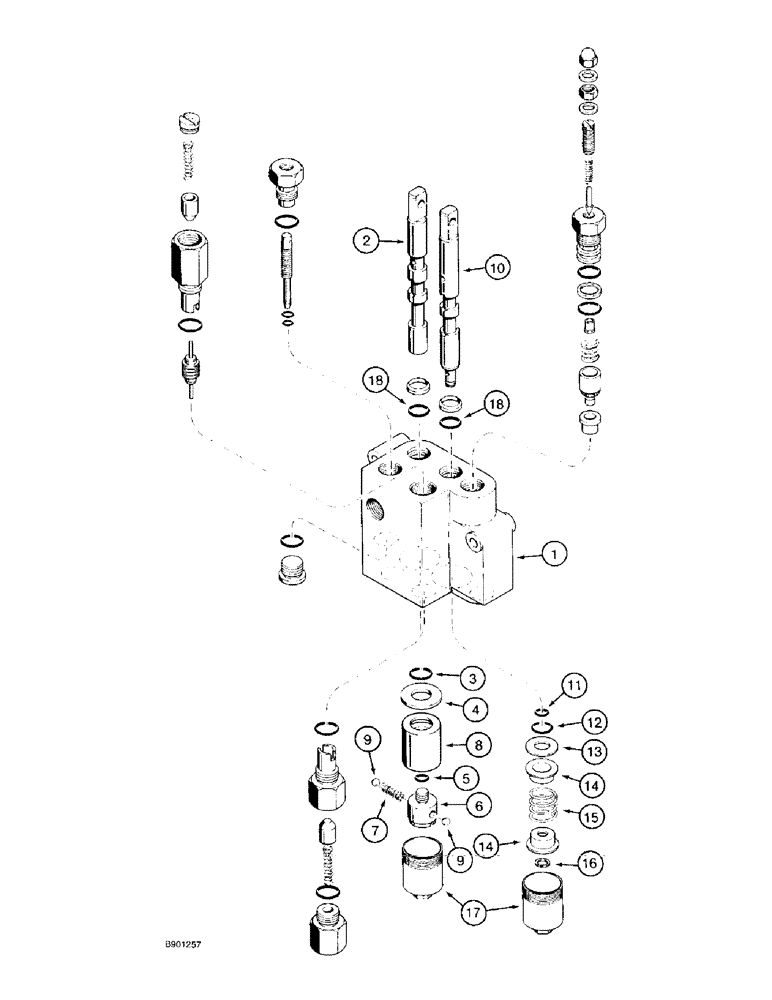

Запчасти Case TF300 (6-22) - PARKER CONTROL VALVE - GROUND DRIVE AND BOOM LIFT, SN (06) - POWER TRAIN

H674542

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 48

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

H674544

SPOOL

ASSEMBLY - ground drive, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - ground drive

1шт.

3

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

4

H265215

RETAINER

WASHER - retainer

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

H438076

RETAINER

- poppet

1шт.

7

R30256

VALVE SPRING

SPRING - retainer

1шт.

8

H438077

JACK BODY

HOUSING - ground drive spool

1шт.

9

211-1009

BALL

- chrome alloy steel, 9/32 inch, grade 24

2шт.

H674543

SPOOL

ASSEMBLY - boom lift, Includes: Ref. 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - boom lift

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

13

H265215

RETAINER

WASHER - retainer

1шт.

14

H266031

RETAINER

SEAT - centering spring

2шт.

15

H266049

SPRING

- centering, spool

1шт.

16

D50016

RING, SNAP

RING - retaining, spool, detent end

1шт.

17

H265207

CAP

HOUSING - spool detent end

2шт.

18

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

W12116

KIT

VALVE ASSEMBLY - main relief, Includes: Ref. 19 - 32

1шт.

19

129-514

CROWN NUT,Low, 5/16" - 24

1шт.

20

D26270

WASHER, SEALING

WASHER - special, with rubber insert

2шт.

21

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

22

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

SCREW, 5/16"-24 x 7/8", Slotted

1шт.

23

D26268

SPRING

- plunger

1шт.

24

D26267

PLUNGER

- pilot

1шт.

25

D26262

CAP

- relief valve

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, outer O-ring

1шт.

28

L30444

O-RING,0.521" ID x 0.661" OD

- relief valve cap

1шт.

29

D26266

SEAT

- plunger

1шт.

30

D26261

VALVE SPRING

SPRING - poppet

1шт.

31

L30687

SPOOL

POPPET - relief

1шт.

32

D26259

SEAT

- poppet

1шт.

H602656

LOCK VALVE

VALVE ASSEMBLY - flow, speed control, Includes: Ref. 33 - 37

1шт.

33

H315994

CYLINDER END CAP

CAP - flow valve assembly

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

N13048

STEM

- 76 mm (3 inch) long

1шт.

36

W13172

OIL SEAL

RING - backup

1шт.

37

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

H674545

VALVE

ASSEMBLY - double check, control valve, Includes: Ref. 38 - 45

1шт.

38

H438070

PIN

SHUTTLE - double check valve

1шт.

39

H438071

CAP

HOUSING - spool eye end

1шт.

40

H438072

SPACER

- double check valve

1шт.

41

H438073

CAP

HOUSING - double check valve, spool detent end

1шт.

42

H438074

ADAPTER

CAP - double check valve

1шт.

43

H438075

VALVE POPPET

POPPET - double check valve

2шт.

44

A14520

VALVE SPRING

SPRING - double check valve

2шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

46

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 47 Hex Soc, 3/4"-16 ORB

1шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

48

4032/51236

WIPER SEAL

SEAL - wiper, spool

2шт.
