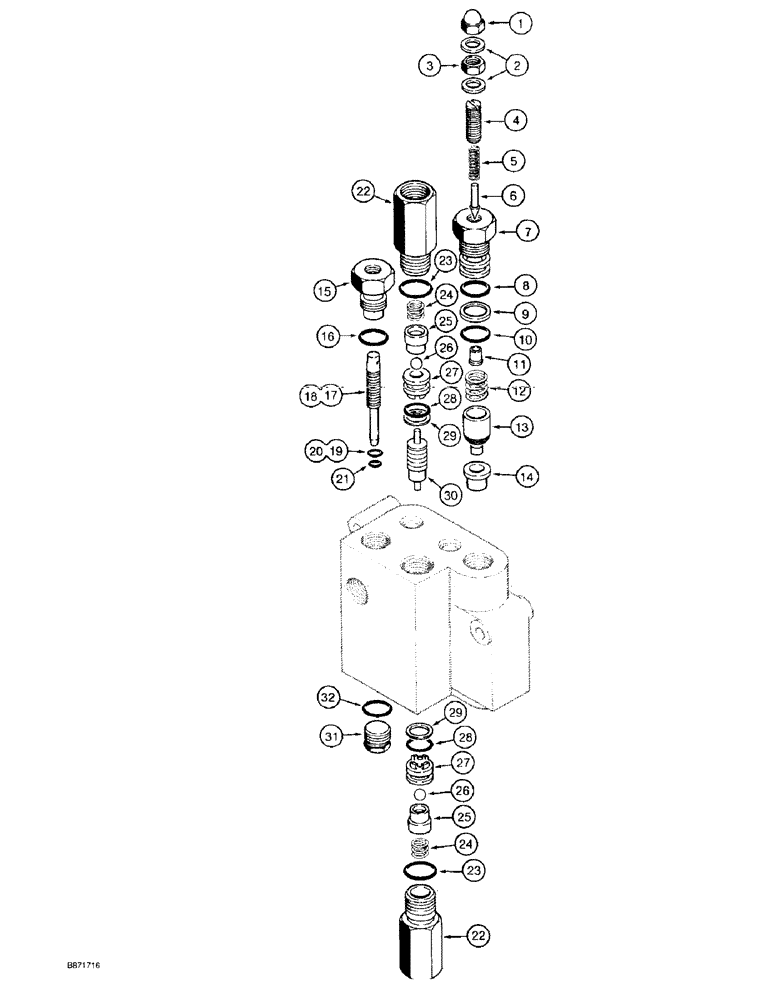

Запчасти Case TF300 (6-20) - PARKER CONTROL VALVE - GROUND DRIVE AND BOOM LIFT, SN (06) - POWER TRAIN

H590182

VALVE

ASSEMBLY - control, continued from Figure 6-18, Includes: Ref. 1 - 32

1шт.

See Figure 6-18 for explanation of usage of the two control valve assemblies.

1шт.

H602409

CONTROL BLOCK

VALVE ASSEMBLY - control, continued from Figure 6-18, Includes: Ref. 1 - 32

1шт.

See Figure 6-18 for explanation of usage of the two control valve assemblies.

1шт.

W12116

KIT

VALVE ASSEMBLY - main relief, control valve, Includes: Ref. 1 - 14

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

- dome, 5/16 inch NF

1шт.

2

D26270

WASHER, SEALING

WASHER - special, with rubber insert

2шт.

Part of seal kit P/N H592063

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

SCREW - set, slotted headless, 5/16 NF x 7/8 inch, adjusting

1шт.

5

D26268

SPRING

- plunger

1шт.

6

D26267

PLUNGER

- pilot

1шт.

7

D26262

CAP

- relief valve

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Relief valve cap

1шт.

Part of seal kit P/N H592063

1шт.

9

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, outer O-ring

1шт.

Part of seal kit P/N H592063

1шт.

10

L30444

O-RING,0.521" ID x 0.661" OD

- inner, relief valve cap

1шт.

Part of seal kit P/N H592063

1шт.

11

D26266

SEAT

- plunger

1шт.

12

D26261

VALVE SPRING

SPRING - poppet

1шт.

13

L30687

SPOOL

POPPET - relief

1шт.

14

D26259

SEAT

- poppet

1шт.

H592055

VALVE

ASSEMBLY - needle, speed control, used in H590182 control valve assembly only, assembly not available, order parts as needed, Includes: Ref. 15 - 21

1шт.

H602656

LOCK VALVE

VALVE ASSEMBLY - flow, speed control, used in H602409 control valve assembly only, assembly not available, order parts as needed, Includes: Ref. 15 - 21

1шт.

15

H315994

CYLINDER END CAP

CAP - flow valve assembly

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N H592063

1шт.

17

H286724

STEM

- 73 mm (2-7/8 inch) long, used in H592055 needle valve assembly only, if used

1шт.

18

N13048

STEM

- 76 mm (3 inch) long, used in H602656 needle valve assembly only, if used

1шт.

19

W12244

RING

- backup, H592055 needle valve assembly only, if used

1шт.

Part of seal kit P/N H592063

1шт.

20

W13172

OIL SEAL

RING - backup, H602656 needle valve assembly only, if used

1шт.

21

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Stem, needle valve assembly

1шт.

Part of seal kit P/N H592063

1шт.

H592048

VALVE

ASSEMBLY - load check, control valve, Includes: Ref. 22 - 30

1шт.

22

H265264

CAP

HOUSING - check valve assembly

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

Part of seal kit P/N H592063

1шт.

24

H266072

SPRING

- check valve assembly

2шт.

25

H266080

GUIDE

- check ball

2шт.

26

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24

2шт.

27

H266064

SEAT

- check valve assembly

2шт.

28

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

2шт.

Part of seal kit P/N H592063

1шт.

29

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

- backup, seat

2шт.

Part of seal kit P/N H592063

1шт.

30

H266056

VALVE POPPET

SHUTTLE - check valve assembly

1шт.

31

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 32 Hex Soc, 3/4"-16 ORB

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N H592063

1шт.

H592063

SEAL ASSY.

KIT - seal, includes 2, 8, 9, 10, 16, 19, 21, 23, 28, 29 and 32 on this Figure and Figure 6-18

1шт.
