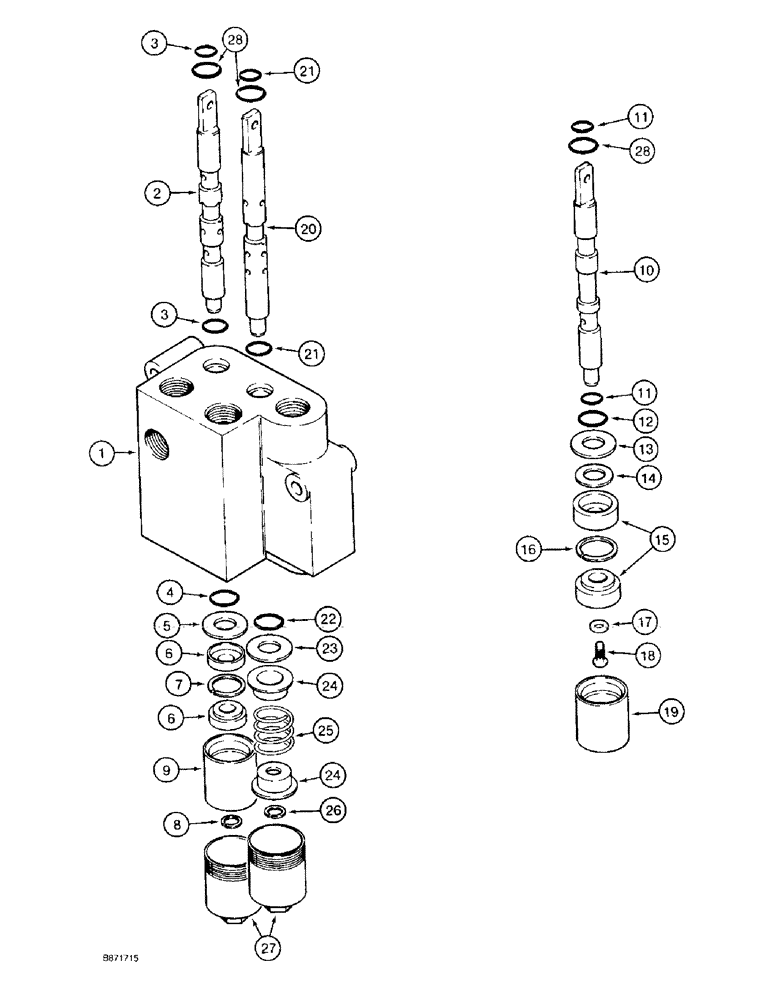

Запчасти Case TF300 (6-18) - PARKER CONTROL VALVE - GROUND DRIVE AND BOOM LIFT, SN (06) - POWER TRAIN

H590182

VALVE

ASSEMBLY - control, also includes parts on Figure 6-20, assembly no longer available, order H602409 control valve assembly, Includes: Ref. 1 - 28

1шт.

H590182 Parker control valve was used on models with Spec. No's. up to but not including P26WS10. H602409 control valve was used on models with Spec. No's. P26WS10, P26LS11, and P26DZ12 and after.

1шт.

H602409

CONTROL BLOCK

VALVE ASSEMBLY - control, also includes parts on Figure 6-20, Includes: Ref. 1 - 28

1шт.

H590182 Parker control valve was used on models with Spec. No's. up to but not including P26WS10. H602409 control valve was used on models with Spec. No's. P26WS10, P26LS11, and P26DZ12 and after.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

H593020

SPOOL

ASSEMBLY - ground drive, used in H590182 control valve only, detent stem retained by snap ring, if used, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - ground drive, detent stem retained by snap ring

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Spool eye and lower stem

2шт.

Part of seal kit P/N H592063

1шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Spool seal, valve body, at detent housing -114, 70 Duro, .612" ID x .103" Thk

1шт.

Part of seal kit P/N H592063

1шт.

5

H265215

RETAINER

WASHER - retainer, detent housing O-ring

1шт.

6

H265231

CUP

SEAT - snap ring, detent

2шт.

7

H265249

RING, SNAP

RING - snap, spool detent

1шт.

8

D50016

RING, SNAP

RING - retaining, spool, detent end

1шт.

9

H265223

JACK BODY

HOUSING - detent

1шт.

H620500

SPOOL

ASSEMBLY - ground drive, color code black, spool detent end retained by screw, used in both control valve assemblies, if used, Includes: Ref. 10 - 19

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - ground drive, detent end retained by screw

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Spool end and lower stem

2шт.

Part of seal kit P/N H592063

1шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Spool seal, valve body, at detent housing -114, 70 Duro, .612" ID x .103" Thk

1шт.

Part of seal kit P/N H592063

1шт.

13

H265215

RETAINER

WASHER - retainer, detent housing O-ring

1шт.

14

H276733

END

WASHER - spool end

1шт.

15

H268581

RING, SNAP

SEAT - snap ring, detent

2шт.

16

H265249

RING, SNAP

RING - snap, spool detent

1шт.

17

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

1шт.

18

182-221

SCREW,Sl Pan Hd, 1/4" - 28 x 7/16"

machine Slotted Pan Hd, 1/4"-28 x 7/16"

1шт.

19

H265223

JACK BODY

HOUSING - detent

1шт.

H593012

SPOOL

ASSEMBLY - boom lift, Includes: Ref. 20 - 26

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL - boom lift

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Spool eye and lower stem

2шт.

Part of seal kit P/N H592063

1шт.

22

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Spool seal, valve body, at detent housing -114, 70 Duro, .612" ID x .103" Thk

1шт.

23

H265215

RETAINER

WASHER - retainer, detent housing O-ring

1шт.

24

H266031

RETAINER

SEAT - centering spring

2шт.

25

H266049

SPRING

- centering, spool

1шт.

26

D50016

RING, SNAP

RING - retaining, spool, detent end

1шт.

27

H265207

CAP

HOUSING - spool detent end

2шт.

28

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Spool seal, eye end, valve body -114, 70 Duro, .612" ID x .103" Thk

2шт.

Part of seal kit P/N H592063

1шт.

H592063

SEAL ASSY.

KIT - seal, Includes: Refs. 3, 4, 11, 12, 21 and 28 on this Figure and on Figure 6-20

1шт.
