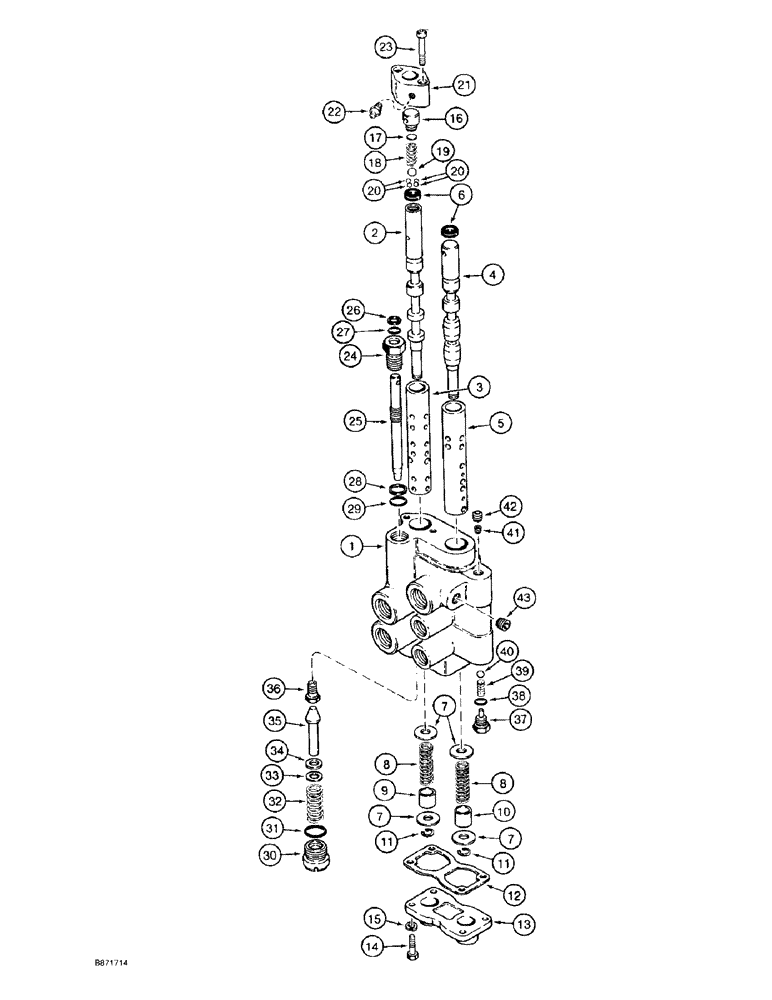

Запчасти Case TF300 (6-16) - AICO CONTROL VALVE - GROUND DRIVE AND BOOM LIFT, FIRST (06) - POWER TRAIN

H545921

LOCK VALVE

VALVE ASSEMBLY - control, Includes: Ref. 1 - 43

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - ground drive

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - ground drive spool

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - boom lift

1шт.

5

NSS

NOT SOLD SEPARAT

SLEEVE - boom lift spool

1шт.

6

H35543

SEAL, RUBBER

SEAL - spool

2шт.

7

H35667

SPOOL

WASHER - spring seat

4шт.

8

H35675

SPRING

- spool

2шт.

9

H35683

STOP

SLEEVE - spring, ground drive spool

1шт.

10

H47696

STOP

SLEEVE - spring, boom lift spool

1шт.

11

100-1137

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

2шт.

12

H35642

GASKET

- cover

1шт.

13

H35659

ARM

COVER - control valve, lower

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

H35550

CYLINDER END CAP

EYE - ground drive spool, detent adjustment

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - detent spool eye

1шт.

18

H35568

SPRING

- detent, ground drive spool

1шт.

19

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24

1шт.

20

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

4шт.

21

H177386

CAP

HOUSING - detent

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, Detent housing 1/4"-28 NPT x .54" lg

1шт.

23

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - hex socket, 1/4 NC x 1-1/4 inch

2шт.

H553883

NEEDLE

VALVE ASSEMBLY - needle, control valve, speed control, Includes: Ref. 24 - 29

1шт.

24

H177212

PLUG

CAP - needle valve assembly

1шт.

25

H177220

NEEDLE

SPOOL - needle valve assembly

1шт.

26

H745612

WASHER

RING - backup, spool O-ring

1шт.

27

A61195

O-RING,0.364" ID x 0.5" OD

- 23/64 ID x 1/16 inch wide, spool to cap

1шт.

28

H758904

WASHER

RING - backup, cap O-ring

1шт.

29

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Cap to valve body

1шт.

30

H35634

PLUG

- adjusting, relief valve

1шт.

31

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Relief valve plug -116, 70 Duro, .737" ID x .103" Thk

1шт.

32

H35626

SPRING

- relief valve

1шт.

33

H47654

SHIM,.010" Thk

Pressure adjusting .010" Thk

1шт.

34

H35618

VALVE SPRING

WASHER - flat, spring seat

1шт.

35

H35600

CONE

POPPET - relief valve

1шт.

36

H35592

LOCK VALVE

SEAT - poppet

1шт.

37

H35725

PLUG

- check valve

1шт.

38

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Check valve plug

1шт.

39

H35717

SPRING

- check valve

1шт.

40

211-103

BALL

- chrome alloy steel, 5/16 inch, grade 24

1шт.

41

H177394

PLUG

- orifice

1шт.

42

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket, 1/16 inch PT

1шт.

43

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.
