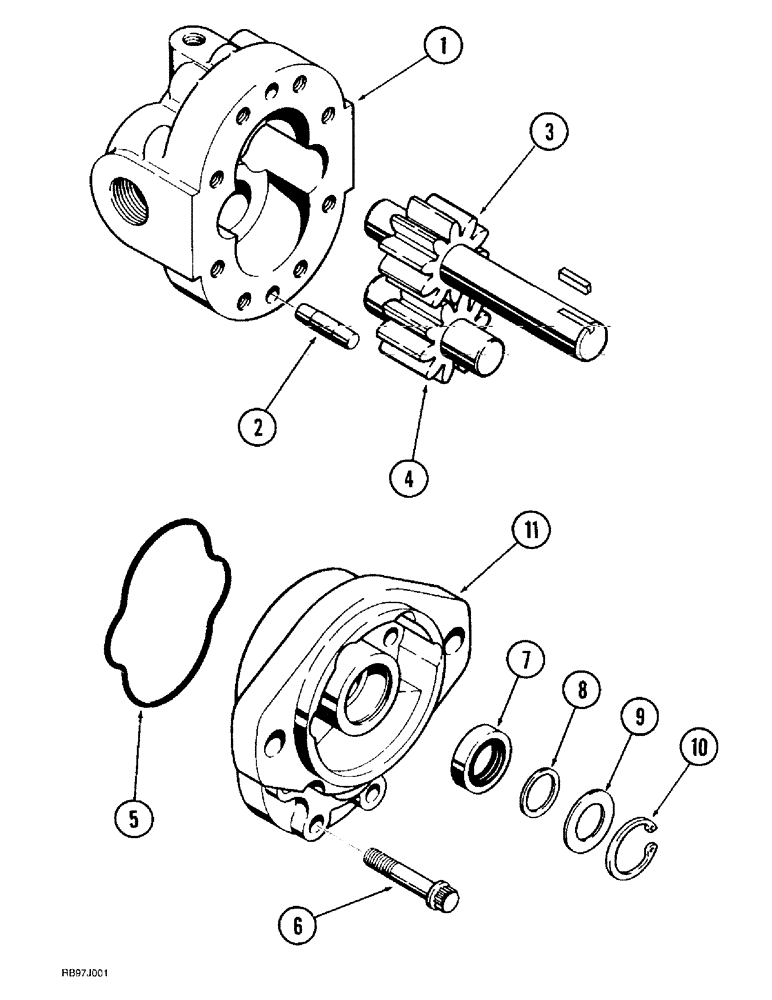

Запчасти Case TF300 (6-14) - GROUND DRIVE MOTOR, 199030A1 (06) - POWER TRAIN

199030A1

MOTOR

ASSEMBLY - ground drive, Includes: Ref. 1 - 11

1шт.

1

232014A1

HOUSING

- motor, port end

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, housing

2шт.

3

232015A1

GEAR

- drive

1шт.

4

232016A1

GEAR, IDLER

GEAR - driven

1шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk

1шт.

6

ZA551980

SCREW

- cap (No Longer Offered)

8шт.

7

H263608

SEAL

- shaft, output

1шт.

8

H418004

WASHER

- backup

1шт.

9

H94490

WASHER

- special

1шт.

10

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.

11

N13533

PLATE

COVER - motor

1шт.
