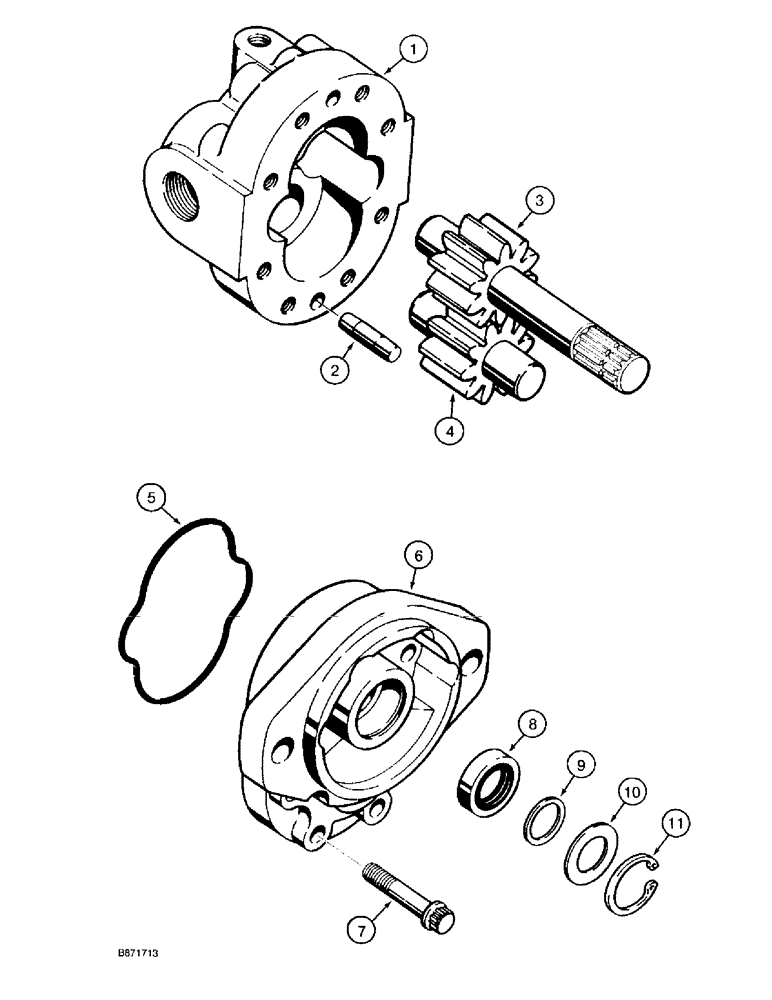

Запчасти Case TF300 (6-12) - GROUND DRIVE MOTOR, H656629 (06) - POWER TRAIN

H656629

GEAR WHEEL

MOTOR ASSEMBLY - ground drive, Includes: Ref. 1 - 11

1шт.

1

H656637

HOUSING

- motor, port end

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, housing

2шт.

3

H656652

GEAR

- drive

1шт.

4

H656645

GEAR, IDLER

GEAR - driven

1шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk, Housing seal

1шт.

Part of seal kit P/N H656678

1шт.

6

N13533

PLATE

COVER - motor, output shaft end

1шт.

7

166-28

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

BOLT - 12 point flange, 5/16 x 1-1/2 inch, grade 8

8шт.

8

H263608

SEAL

- shaft, output

1шт.

Part of seal kit P/N H656678

1шт.

9

H418004

WASHER

- backup

1шт.

Part of seal kit P/N H656678

1шт.

10

H94490

WASHER

- special

1шт.

Part of seal kit P/N H656678

1шт.

11

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.

Part of seal kit P/N H656678

1шт.

H656678

SEAL ASSY.

KIT - seal, Includes: Refs. 5, 8, 9, 10 and 11

1шт.
