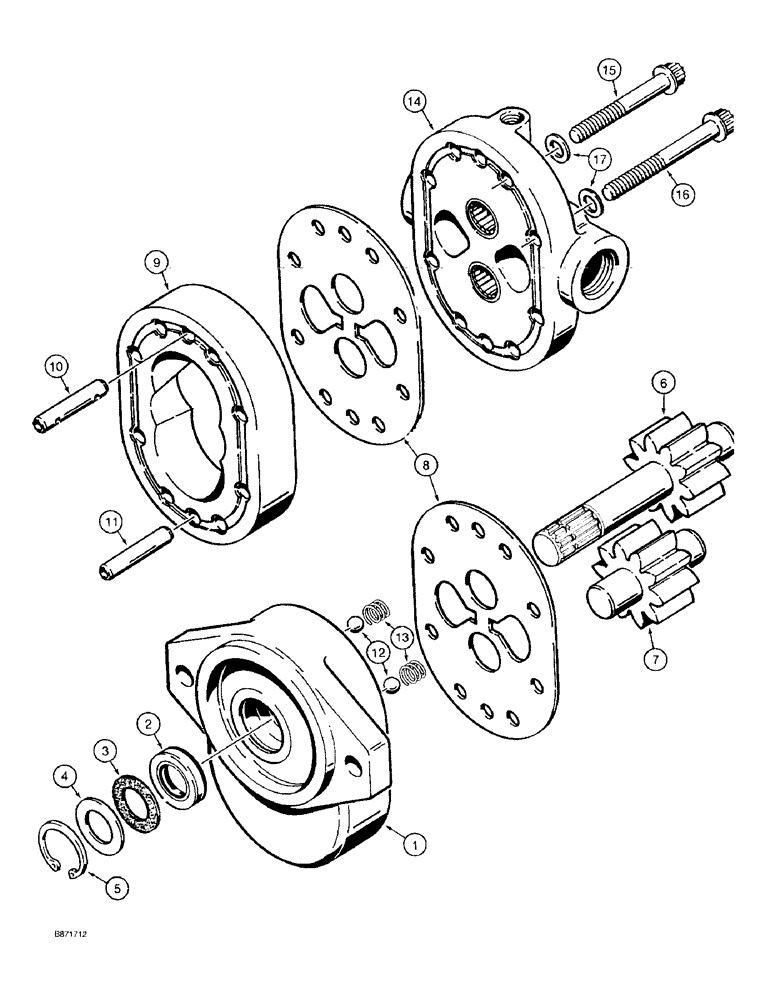

Запчасти Case TF300 (6-10) - GROUND DRIVE MOTOR, H523720 (06) - POWER TRAIN

H523720

MOTOR HOUSING

MOTOR ASSEMBLY - ground drive, assembly no longer available, order H656629 motor assembly on Figure 6-12, Includes: Ref. 1 - 17

1шт.

Part of seal kit P/N H599704

1шт.

1

H103002

PLATE ASSY.

HOUSING - output shaft end

1шт.

2

H263608

SEAL

- shaft, output

1шт.

Part of seal kit P/N H599704

1шт.

3

A41346

RING

- backup, special

1шт.

Part of seal kit P/N H599704

1шт.

4

H94490

WASHER

- special

1шт.

Part of seal kit P/N H599704

1шт.

5

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.

Part of seal kit P/N H599704

1шт.

6

H97873

GEAR WHEEL

GEAR - drive

1шт.

7

H97881

GEAR WHEEL

GEAR - driven

1шт.

8

H31328

PLATE ASSY.

PLATE - thrust

2шт.

Part of seal kit P/N H599704

1шт.

H97865

BODY

HOUSING ASSEMBLY - gear, Includes: Ref. 9 - 11

1шт.

9

H215616

BODY

HOUSING - gear

1шт.

10

H219576

DOWEL

PIN - dowel, drain, gear housing, upper

1шт.

11

L33494

PIN,12.7mm OD x 63.5mm L

- dowel, gear housing, lower

1шт.

12

211-1013

BALL,10.31mm OD, Gr 24

- chrome alloy steel, 13/32 inch, grade 24

2шт.

Part of seal kit P/N H599704

1шт.

13

H104406

SPRING

- ball

2шт.

Part of seal kit P/N H599704

1шт.

14

H501494

PLATE ASSY.

HOUSING - port end

1шт.

15

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

BOLT - 12 point flange, 5/16 NC x 2-3/4 inch, grade 8

4шт.

16

166-35

12 PT SCREW,Flg, 5/16" - 18 x 3 1/4", Gr 8

BOLT - 12 point flange, 5/16 NC x 3-1/4 inch, grade 8

4шт.

17

F10897

WASHER

- copper

8шт.

Part of seal kit P/N H599704

1шт.

H599704

KIT

- seal, Includes: Refs. 2 - 5, 8, 12, 13, 17 and P/N H523720

1шт.
