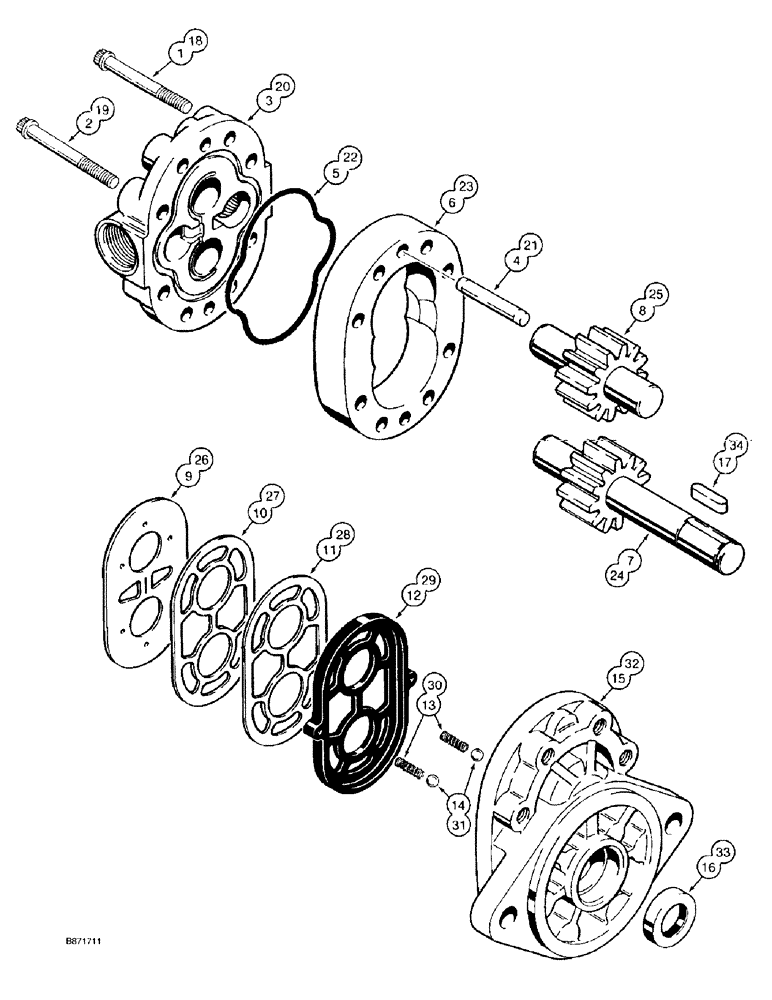

Запчасти Case TF300 (6-08) - GROUND DRIVE PUMP, GROUND DRIVE PUMP ASSEMBLY, GROUND DRIVE (06) - POWER TRAIN

H561282

PUMP

ASSEMBLY - used before SN S269979 on Wisconsin models, before SN S269993 on Deutz models, and before SN S269999 on Lister models, may be replaced with H561274 pump assembly (see below), Includes: Ref. 1 - 17

1шт.

Both gears, center gear housing, dowel pins and bolts are not interchangeable between the two pump assemblies.

1шт.

1

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

BOLT - 12 point flange, 5/16 NC x 2-1/4 inch, grade 8

4шт.

2

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

BOLT - 12 point flange, 5/16 NC x 2-3/4 inch, grade 8

4шт.

3

N6036

PLATE

HOUSING - port end

1шт.

4

H753848

AXLE PIN

PIN - dowel, 5/16 x 1-3/8 inch

2шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk

1шт.

6

H203679

HOUSING

- gear

1шт.

7

H563056

GEAR

- drive

1шт.

8

R33010

GEAR WHEEL

GEAR - driven

1шт.

9

D77645

DIAPHRAGM

- pump, drive end

1шт.

10

D77553

GASKET

- backup

1шт.

11

H262477

GUARD

GASKET - protector

1шт.

13

F9883

SPRING

- ball

2шт.

14

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Gr 24

2шт.

15

H501577

PLATE ASSY.

HOUSING - drive end

1шт.

16

F11406

SEAL

- shaft

1шт.

17

H35147

KEY

- square, 3/16 x 49/64 inch

1шт.

336058A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - used on SN S269979 and after on Wisconsin models, SN S269993 and after on Deutz models, and SN S269999 and after on Lister models (replaces H561274), Includes: Ref. 18 - 34

1шт.

Both gears, center gear housing, dowel pins and bolts are not interchangeable between the two pump assemblies.

1шт.

H561274 being replaced by new style 336058A1. For replacement parts for new pump, see its BOM.

1шт.

18

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

BOLT - 12 point flange, 5/16 NC x 2-1/4 inch, grade 8

4шт.

19

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

BOLT - 12 point flange, 5/16 NC x 2-1/2 inch, grade 8

4шт.

20

N6036

PLATE

HOUSING - port end

1шт.

21

H753855

GUIDE

PIN - dowel, 5/16 x 1-1/4 inch, dowel, 5/16 x 1-1/4 inch

2шт.

22

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk

1шт.

23

H202804

BODY

HOUSING - gear, 16 mm (5/18 inch) wide

1шт.

24

H562991

GEAR

- drive

1шт.

25

H563007

GEAR

- driven

1шт.

26

D77645

DIAPHRAGM

- pump, drive end

1шт.

27

D77553

GASKET

- backup

1шт.

28

H262477

GUARD

GASKET - protector

1шт.

29

D61922

SEAL

- diaphragm

1шт.

31

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Gr 24

2шт.

32

H501577

PLATE ASSY.

HOUSING - drive end

1шт.

33

F11406

SEAL

- shaft

1шт.

34

H35147

KEY

- square, 3/16 x 49/64 inch

1шт.

D77554

SEAL

KIT - seal, includes Ref. 5, 9 - 14, 16, 22, 26 - 31 and 33, applies to both pump assemblies

1шт.
