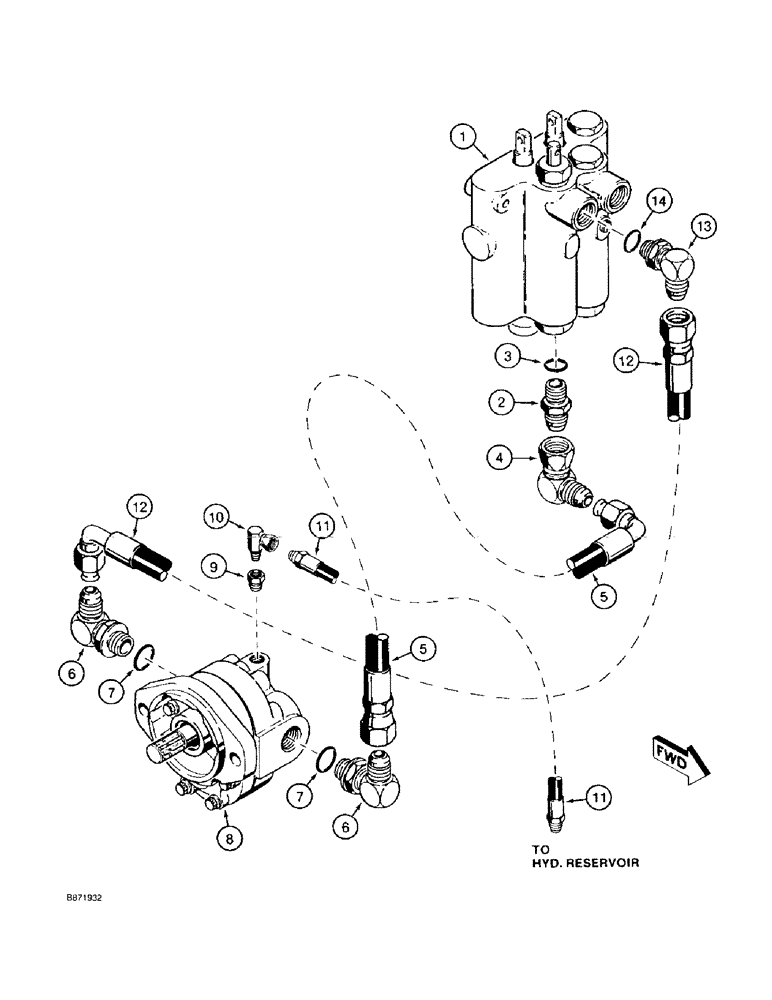

Запчасти Case TF300 (6-06) - GROUND DRIVE HYDRAULIC CIRCUIT, P.I.N. 1213177 AND AFTER (06) - POWER TRAIN

1

H669796

VALVE

ASSEMBLY - control, ground drive and boom, (See Figure 6-26)

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

5

H264697

HOSE ASSY.

HOSE - 762 mm (30 inch) long, control valve to ground drive motor

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

REF

INSTRUCTION

MOTOR ASSEMBLY - ground drive, (See Figures 6-10 - 6-14)

1шт.

9

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

10

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree, 1/8 inch PT x swivel str pipe

1шт.

11

H103606

HOSE,0.25" ID x 17.00", SAE 100R3

Ground Drive Motor to Reservoir 0.25" ID x 17.00", SAE 100R3

1шт.

12

H279984

HOSE

- 559 mm (22 inch) long, ground drive motor to control valve

1шт.

13

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
